High frequency, quartz shear ICP® accel., 10 mV/g, 1 to 8k Hz, 5-44 side conn., ground isolated

• Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
• Measurement Range: ±500 g pk (±4905 m/s² pk)
• Broadband Resolution: 0.005 g rms (0.05 m/s² rms)
• Frequency Range: (±5%)1 to 10000 Hz
• Sensing Element: Quartz
• Weight: 0.07 oz (2.0 gm)

Triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC connector)

• Connector Style: Triple Splice
• Connector Style: BNC
• Connection Type: Plug (male pin)
• Temperature Range: -67 to 230 °F (-55 to 110 °C)

Low noise coaxial cable, blue TFE jacket, 10-m, 10-32 coaxial plug to BNC plug

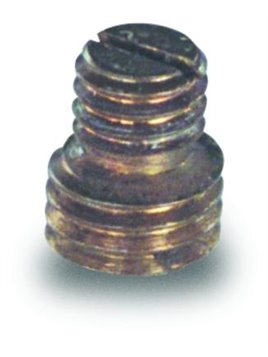

Metric mtg stud, 10-32 to M6 x 0.75 x 0.300" long, BeCu, no shoulder

Pilot bushing for Models M206C & M216B

Pigtail (no connector, stripped and tinned ends only) labeled for 3503 Series

• Connector Style: Pigtail

Double splice to two BNC plugs, labeled 'front' and 'rear' (for 137B sensors with two outputs)

• Connector Style: Double Splice
• Connector Style: BNC
• Connection Type: Plug (male pin)
• Temperature Range: -67 to 230 °F (-55 to 110 °C)

BNC Jack

• Connector Style: BNC
• Connector Style: Coaxial
• Connection Type: Jack (female socket / recepticle)
• Temperature Range: -85 to 329 °F (-65 to 165 °C)

Calibration for Models 426A02 and 426B02 A-weighted filters

2-pin 7/16-27 UNS-2A jack, 900F operating temperature (for 013 hardline cable) **Not field installable**

• Connector Style: Multi-conductor
• Connection Type: 2-pin
• Connection Type: Plug (male pin)
• Temperature Range: -65 to 900 °F (-54 to 482 °C)

377C13 pressure microphone and HT426E01 high temp preamplifier system calibrated and TEDS programmed

• Nominal Microphone Diameter: 1/2"
• Frequency Response Characteristic: Pressure
• Frequency Range: (±2dB)3.5 to 20000 Hz
• Dynamic Range: 150 dB re 20 µPa

High frequency, quartz shear ICP® accel., 10 mV/g, 1 to 8k Hz, 10-32 top conn., ground isolated

• Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
• Measurement Range: ±500 g pk (±4905 m/s² pk)
• Broadband Resolution: 0.005 g rms (0.05 m/s² rms)
• Frequency Range: (±5%)1 to 10000 Hz
• Sensing Element: Quartz
• Weight: 0.06 oz (1.8 gm)
