Low outgassing vibration measurements

Low outgassing

Vibration measurements in a vacuum are fundamentally unproblematic - assuming correct sensor selection! Crucial for the applicability of a sensor under vacuum conditions are two criteria: hermetic tightness of the sensor housing and the absence of strong outgassing components on sensor and cable.

Showing 1-3 of 3 item(s)
Showing 1-3 of 3 item(s)

Active filters

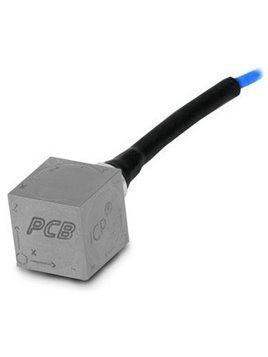

PCB-356M57

  • Triaxial ICP® miniature vibration sensor for vacuum applications,
  • Low outgassing
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • Integrated connection cable, length 1.5 m,
    ending on 4-pin female connector,
  • including extension cable, length 1.5 m,
    ending to three BNC

    PCB-356M208

    • Triaxial ICP® miniature vibration sensor for vacuum applications,
    • Low outgassing

    ,

    • measuring range 1000 g,
    • sensitivity 5 mV / g,
    • frequency range 2 … 8,000 Hz,
    • mass 1 gram,
    • integrated cable, length 1.5 m, ending on 4 PIN Jack,
    • including extension cable, length 6 meter, ending to three BNC

    PCB-356M98

  • Triaxialer ICP® vibration sensor for vacuum applications,
  • Low outgassing
  • Measuring range 5 g,
  • Sensitivity 1,000 mV / g,
  • Frequency range 0.5 … 3,000 Hz,
  • 4-pin female connector on the side
