Precision vibration sensors

Precision vibration sensors

For use with data collectors and for general tasks in the context of condition monitoring, industrial ICP® precision sensors are suitable. They are characterized by a tight sensitivity tolerance of ± 5% and by their long-term stability. The double-walled sensor design has a mass-insulating effect and prevents signal distortion due to external influences. For use in liquids or oils, transducers with tight, integrated connecting cables are available.

Showing 1-12 of 31 item(s)
Showing 1-12 of 31 item(s)

Active filters

PCB-(M)635A01

  • Industrial ICP® vibration sensor,
  • with through hole,
  • Sensitivity 100 mV/g,
  • Measurement range 50 g,
  • Frequency range 0.53 … 15,000 Hz,
  • Measurement range 50 g,
  • Frequency range 0.53 … 15,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector on the side

    PCB-(M)631A80

  • Industrial ICP® vibration sensor,
  • With through hole,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 0.53 … 16,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector on the side

    PCB-(M)628F61

  • Industrial ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.33 … 12.000 Hz,
  • Frequency response calibration,
  • Integrated armored cable, length 3 m,
    ending on cut end

    PCB-(M)628F11

  • Industrial ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.33 … 12.000 Hz,
  • Frequency response calibration,
  • Integrated cable, length 3 m,
    ending on cut end

    PCB-(M)628F01

  • Industrial ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.33 … 12.000 Hz,
  • Frequency response calibration,
  • 2-pin female connector above

    PCB-(M)626B13

  • Industrial ICP® vibration sensor,
  • Measuring range 5 g,
  • Sensitivity 1,000 mV / g,
  • Frequency range 0.2 … 6,000 Hz,
  • Frequency response calibration,
  • Integrated cable, length 3 m,
    ending on cut end

    PCB-(M)626B12

  • Industrial ICP® vibration sensor,
  • Measuring range 10 g,
  • Sensitivity500 mV / g,
  • Frequency range 0.2 … 6,000 Hz,
  • Frequency response calibration,
  • Integrated cable, length 3 m,
    ending on cut end

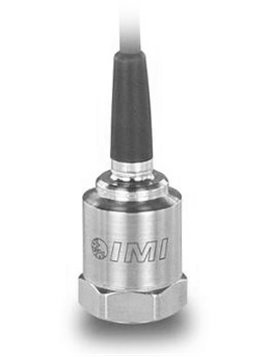

    PCB-(M)626B11

  • Industrial ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.2 … 10,000 Hz,
  • Frequency response calibration,
  • Integrated cable, length 3 m,
    ending on cut end

    PCB-(M)626B03

  • Industrial ICP® vibration sensor,
  • Measuring range 5 g,
  • Sensitivity 1,000 mV / g,
  • Frequency range 0.2 … 6,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector above

    PCB-(M)626B02

  • Industrial ICP® vibration sensor,
  • Measuring range 10 g,
  • Sensitivity500 mV / g,
  • Frequency range 0.2 … 6,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector above

    PCB-(M)626B01

  • Industrial ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.2 … 10,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector above

    PCB-(M)626A04

  • Industrial ICP® vibration sensor for seismic measurements,
  • Measuring range 0.5 g,
  • Sensitivity 10,000 mV / g,
  • Frequency range 0.04 … 500 Hz,
  • Frequency response calibration,
  • 2-pin female connector above
