Piezoelectric ring force transducers are able to measure dynamic and quasistatic pressure and impact forces (with suitable pretension also tensile forces) with rise times smaller than 10 μs. Typical use is the installation as an intermediate layer between plates or machine elements. The high rigidity and robust quartz measuring elements ensure stable operation even when used industrially. Models with ICP® technology and with charge output are available.

Showing 1-12 of 30 item(s)
Showing 1-12 of 30 item(s)

Active filters

PCB-(M)202B

  • ICP® force-load washer,
  • Measuring range 1 kN,
  • Sensitivity 4991 mV / kN,
  • Frequency range 0.005 ... 65.000 Hz,
  • 10-32 connector on the side

PCB-(M)206C

  • ICP® power measurement washer,
  • Measuring range 356 kN,
  • Sensitivity 13,5 mV / kN,
  • Frequency range 0.0003 … 40,000 Hz,
  • 10-32 female connector on the side

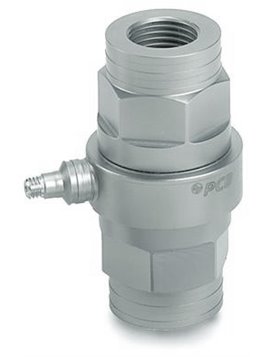

    PCB-(M)224C

  • ICP® force measuring element,
  • Range 35.6 … 129 kN,
  • Sensitivity 45 mV / kN,
  • Frequency range 0.0003 … 8,000 Hz,
  • 10-32 female connector on the side

    PCB-(M)207C

  • ICP® power measurement washer,
  • Measuring range 445 kN,
  • Sensitivity 11,2 µV / kN,
  • Frequency range 0.0003 … 35,000 Hz,
  • 10-32 female connector on the side

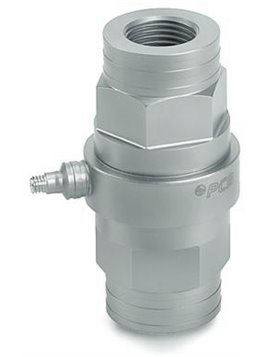

    PCB-(M)225C

  • ICP® force measuring element,
  • Measuring range 53 … 156 kN,
  • Sensitivity 31.5 mV / kN,
  • Frequency range 0.0003 … 6,000 Hz,
  • 10-32 female connector on the side

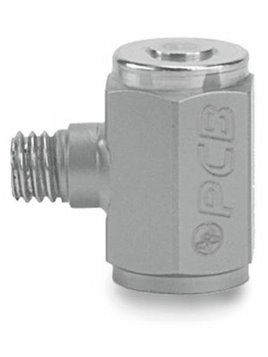

    PCB-(M)209C01

  • Miniature-ICP® power sensor,
  • Range 4.5 … 9.8 N,
  • Sensitivity 495 mV / N,
  • Frequency range 0.5 … 30,000 Hz,
  • 10-32 female connector on the side

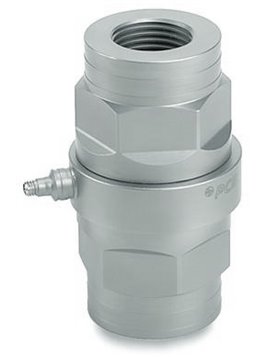

    PCB-(M)226C

  • ICP® force measuring element,
  • Measuring range 89 …?200 ?N,
  • Sensitivity 24.7 mV / kN,
  • Frequency range 0.0003 … 5,000 Hz,
  • 10-32 female connector on the side

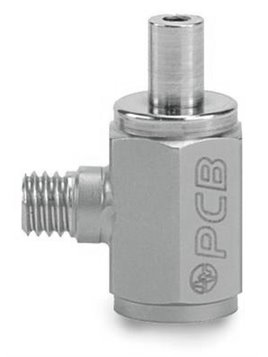

    PCB-(M)209C11

  • Miniature-ICP® power sensor,
  • Measuring range 9.8 N,
  • Sensitivity 495 mV / N,
  • Frequency range 0.5 … 30,000 Hz,
  • 10-32 female connector on the side

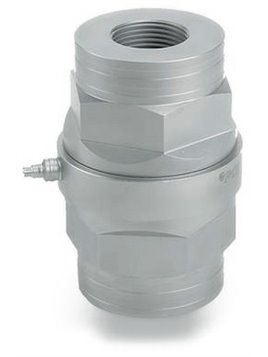

    PCB-(M)227C

  • ICP® force measuring element,
  • Range-133 … 222 kN,
  • Sensitivity 22.5 mV / kN,
  • Frequency range 0.0003 … 4,000 Hz,
  • 10-32 female connector on the side

    PCB-(M)211B

  • Force measuring washer with charge output,
  • Measuring range 22.2 kN,
  • Sensitivity 4.05 pC/N,.
  • Upper frequency limit 90,000 Hz,.
  • 10-32 socket side

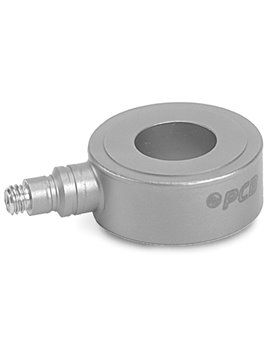

    PCB-(M)213B

    • Force measuring washer with charge output,
    • Measuring range 89 kN,
    • Sensitivity 4.05 pC/N,.
    • Upper cutoff frequency?60.000 Hz.
    • 10-32 socket side

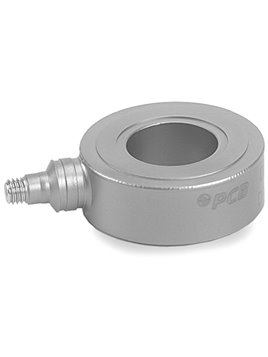

    PCB-(M)214B

  • Force measuring washer with charge output,
  • Measuring range 178 kN,
  • Sensitivity 4.05 pC/N,.
  • Upper frequency limit 55,000 Hz,.
  • 10-32 socket side
