Industrial Vibration Sensors

0

Digiducer - USB Digital Accelerometer

• Works with Windows, iOS, Linux, Android, and Mac OS
• Record vibration data via laptop or tablet
• Uses existing operating system drivers – no download required
• Piezoelectric ruggedness and extended dynamic range
• Eliminates need for data acquisition
• Flat response up to 8 kHz
• 24 bit internal ADC
• Supported by independent software vendors

0

TMS-9210D

• Portable system for calibration of vibration sensors
• Frequency range 0.7 ... 2,000 Hz
• adjustable amplitude
• LCD display in SI or US units
• Battery operation up to 18 hours
• Integrated ICP® supply and display of the bias voltage
• Signal input socket and output socket for reference signal
• Including data storage and USB port for data export

0

PCB-MXM622B11

• Industrial ICP® vibration sensor
• With mine approval
• Measuring range 50 g
• Sensitivity 100 mV / g
• Frequency range 0.2 ... 10,000 Hz
• Frequenzgangkalibrierung
• Integrated connection cable, length 3 meters,
  ending on the cut end

0

PCB-VO(M)622B01

• Industrial ICP® vibration sensor
• With vibration velocity output
• Measuring range 1.27 m / s
• Sensitivity 3.9 V / (m / s)
• Frequency range 3 ... 9,000 Hz
• Frequenzgangkalibrierung
• 2-pin female connector on top

0

PCB-VO(M)622B11

• Industrial ICP® vibration sensor
• With vibration velocity output
• Measuring range 1.27 m / s
• Sensitivity 3.9 V / (m / s)
• Frequency range 3 ... 9,000 Hz
• Frequenzgangkalibrierung
• Integrated connection cable, length 3 meters,
  ending on the cut end

0

TMS-9100D

• Portable system for calibration of vibration sensors
• Frequency range 5 ... 10,000 Hz
• adjustable amplitude
• LCD display in SI or US units
• Battery operation up to 18 hours

0

PCB-637A06

• Industrial ICP® vibration sensor,
• Quartz sensor element,
• Temperature range -196 ... +121 ° C,
• Measuring range 200 g,
• Sensitivity 25 mV / g,
• Frequency range 0.2 ... 1500 Hz,
• 2-pin connector at the top

0

PCB-638A06

• Industrial ICP® vibration sensor,
• Quartz sensor element,
• Mounting via through-hole,
• Temperature range -196 ... +121 ° C,
• Measuring range 200 g,
• Sensitivity 25 mV / g,
• Frequency range 0.4 ... 1500 Hz,
• 2-pin connection socket on the side

0

PCB-EX(M)639A91

• Triaxial industrial ICP® vibration sensor,
• With through hole,
• Measuring range 50 g,
• Sensitivity 100 mV / g,
• Frequency range 0.5 ... 10.000 Hz,
• Frequency calibration,
• M12 connection socket on the side

0

PCB-EX357A94

• With ATEX / IECEx / CSA approval
• Vibration sensor with differential charge output
• Continuous operating temperature up to 649 ° C
• With through hole
• Measuring range 1,000 g
• Sensitivity 3.3 pC / g
• Upper limit frequency 3,000 Hz
• Integrated hardline connection cable, length 3 meters,
  ending on 7 / 16-27 2-pin

0

PCB-EX357A95

• With ATEX / IECEx / CSA approval
• Vibration sensor with differential charge output
• Measuring axis perpendicular to the mounting screw
• Continuous operating temperature up to 649 ° C
• With through hole
• Measuring range 1,000 g
• Sensitivity 3.3 pC / g
• Upper limit frequency 3,000 Hz
• Integrated hardline connection cable, length 3 meters,
  ending on 7 / 16-27 2-pin

0

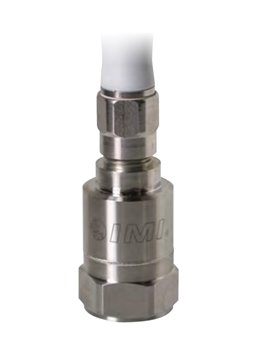

ICP® Beschleunigungssensor-Kit: PCB-(M)601A92 & 507QSXXXBZ

• IP69K compliant ICP® acceleration sensor Kit, low-noise,
• Aligned on high hygienic requirements in food production.
• Consisting of sensor PCB-(M)601A92 & cable 507QSXXXBZ,.
• Industrial ICP® vibration sensor,
• Measuring range 10 g,
• Sensitivity 500 mV / g,.
• Frequency range 0.17... 10,000 Hz,
• One-point calibration at 100 Hz,
• M12 socket top
