Impact force sensors

Impact force sensors are especially suitable for industrial applications. They are used for measurements on impact plates or on punches, presses and similar machines. The exchangeable, slightly curved impact cap ensures even force transmission.

Showing 1-7 of 7 item(s)
Showing 1-7 of 7 item(s)

Active filters

PCB-200C50

  • ICP® sensor for power measurement,
  • Measuring range 222 kN,
  • Sensitivity 22.5 mV / kN,.
  • Frequency range 0.0003... 30,000 Hz,
  • 10-32 socket side

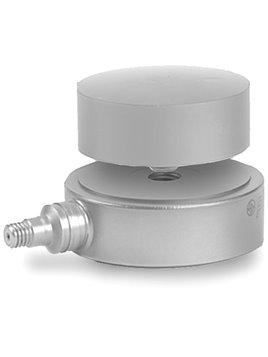

PCB-200C20

  • ICP® sensor for power measurement,
  • Measuring range 89 kN,
  • Sensitivity 56.2 mV / kN,
  • Frequency range 0.0003 … 40,000 Hz,
  • 10-32 female connector on the side

    PCB-200B05

  • ICP® sensor for power measurement,
  • Measuring range 22.2 kN,
  • Sensitivity 225 mV / kN,
  • Frequency range 0.0003 … 75,000 Hz,
  • 10-32 female connector on the side

    PCB-200B04

  • ICP® sensor for power measurement,
  • Measuring range 4.448 N,
  • Sensitivity 1,1 mV / N,
  • Frequency range 0.0003 … 75,000 Hz,
  • 10-32 female connector on the side

    PCB-200B03

  • ICP® sensor for power measurement,
  • Measuring range 2.224 N,
  • Sensitivity 2,2 mV / N,
  • Frequency range 0.0003 … 75,000 Hz,
  • 10-32 female connector on the side

    PCB-200B02

  • ICP® sensor for power measurement,
  • Measuring range 445 N,
  • Sensitivity 11,2 µV / N,
  • Frequency range 0.001 … 75,000 Hz,
  • 10-32 female connector on the side

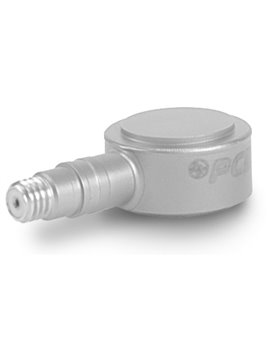

    PCB-200B01

  • ICP® sensor for power measurement,
  • Measuring range 44.5 N,
  • Sensitivity 112 mV / N,
  • Frequency range 0.01 … 75,000 Hz,
  • 10-32 female connector on the side
