Cryogenic sensors

Cryogenic sensors

Some measurement tasks, for example in the field of vacuum or rocket technology, require acceleration sensors that deliver reliable measurement results even at temperatures below -150 ° C. For this reason, Piezotronics has developed the series 351 acceleration sensors for cryogenic applications, which can be used at temperatures down to -196 ° C.

Showing 1-5 of 5 item(s)
Showing 1-5 of 5 item(s)

Active filters

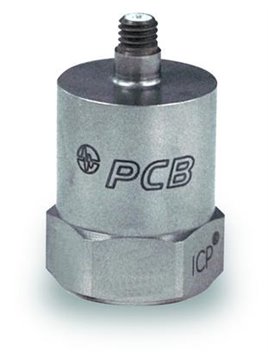

PCB-351B42

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 15 g,
  • Sensitivity 100 mV/g,
  • Frequency range 1 … 2,000 Hz,
  • 10-32 female connector above

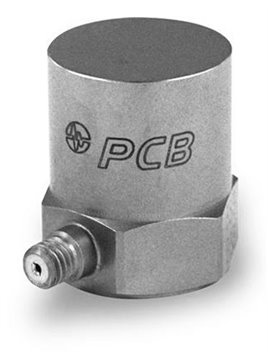

    PCB-351B41

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 15 g,
  • Sensitivity 100 mV/g,
  • Frequency range 1 … 2,000 Hz,
  • 10-32 female connector on the side

    PCB-(M)351B11

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 300 g,
  • Sensitivity 5 mV / g,
  • Frequency range 1 … 10,000 Hz,
  • Mass 2.5 grams,
  • 10-32 female connector on the side

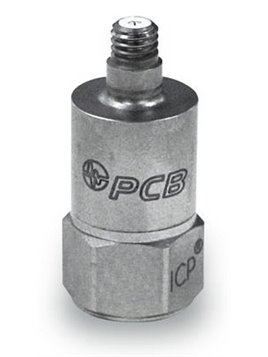

    PCB-351B04

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 150 g,
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 6,000 Hz,
  • 10-32 female connector above

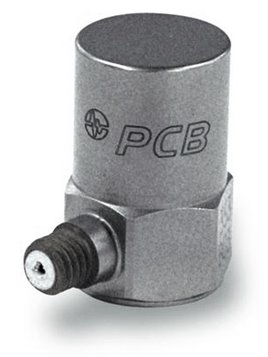

    PCB-351B03

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 150 g,
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 6,000 Hz,
  • 10-32 female connector on the side
