Strain sensors

Strain sensors

Piezoelectric strain sensors measure dynamic and quasistatic stresses on machines. Either glued on or mounted on the surface of a machine or structure by means of a mounting screw, the sensors measure minute strains. On the examinee itself, no changes must be made. Due to the internal ICP® amplifier, the operation of these sensors is possible on all standard supply units.

Showing 1-7 of 7 item(s)
Showing 1-7 of 7 item(s)

Active filters

PCB-740M04

  • ICP® strain sensor,
  • Measuring range 900 με,
  • Sensitivity 5 mV / με,
  • Frequency range 0.5 ... 100,000 Hz,
  • Integrated connection cable, length 3 meters,
    ending on 10-32 plug

PCB-740M06

  • ICP® strain sensor,
  • Measuring range 900 με,
  • Sensitivity 2 pC / με,
  • Frequency range 0.5 ... 100,000 Hz,
  • Integrated connection cable, length 3 meters,
    ending on 10-32 plug

PCB-JM240A03

  • ICP® strain sensor,
  • Measuring range 300 με,
  • Sensitivity 10 mV / με,
  • Lower limit frequency 0.004 Hz,
  • 10-32 connector on the side,
  • Masseisolierung

PCB-RH(M)240A03

  • ICP® strain sensor,
  • Measuring range 300 µ ε
  • Sensitivity 10 mV / µ ε
  • Lower limiting frequency 0.004 Hz,
  • 10-32 female connector on the side

    PCB-RH(M)240A02

  • ICP® strain sensor,
  • Measuring range 100 µ ε
  • Sensitivity 50mv / µ ε
  • Lower limiting frequency 0.004 Hz,
  • 10-32 female connector on the side

    PCB-RH(M)240A01

  • ICP® strain sensor,
  • Measurement range 50 µ ε
  • Sensitivity 100 mV / µε
  • Lower limiting frequency 0.015 Hz,
  • 10-32 female connector on the side

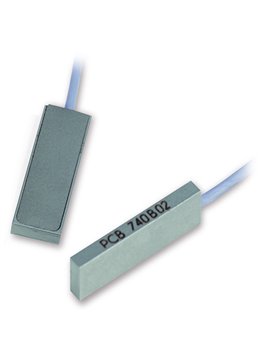

    PCB-740B02

  • ICP® strain sensor,
  • Measuring range 100 µ ε
  • Sensitivity 50mv / µ ε
  • Frequency range 0.5 … 100,000 Hz,
  • Integrated cable, length 3 m,
    ending on 10-32 plug
