ICP® high-temperature accelerometer sensors

ICP® high-temperature accelerometer sensors

The accelerometers listed here are designed for use at temperatures between -73 and 163 ° C. These conditions prevail e.g. in climatic chambers in cyclically changing ambient conditions and in tests at high or low temperatures. The internal ICP® amplifier allows the connection of these sensors to the usual measuring systems and analyzers.

Showing 1-12 of 13 item(s)
Showing 1-12 of 13 item(s)

Active filters

PCB-(M)320C53

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 1... 5,000 Hz,
  • Mass 1.9 grams,
  • 5-44 connector on the side

PCB-W(M)320C15

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Water - and oil-tight cable connection,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Mass 2 grams,
  • 5-44 female connector on the side

    PCB-HT352B01

  • ICP®-miniature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Mass 0.7 grams,
  • Integrated cable, length 3 m,
    ending on 10-32 plug

    PCB-HT352A21/NC

  • ICP®-miniature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Mass 0.6 grams,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 10,000 Hz,
  • 3 56-connector side,
  • Without connection cable

    PCB-HT352A25/NC

  • ICP®-miniature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Mass 0.6 grams,
  • Measuring range 2,000 g
  • Sensitivity 2.5 mV / g,
  • Frequency range 1 … 10,000 Hz,
  • 3 56-connector side,
  • Without connection cable

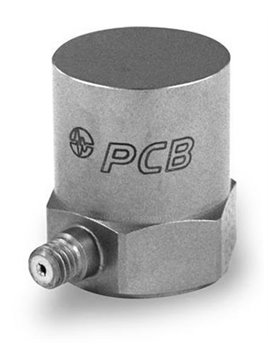

    PCB-320C33

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 1 … 4.000 Hz,
  • 10-32 female connector on the side

    PCB-(M)320C20

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • 10-32 female connector above

    PCB-(M)320C18

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Mass 1.7 grams,
  • 10-32 female connector above

    PCB-(M)320C15

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Mass 2 grams,
  • 5-44 female connector on the side

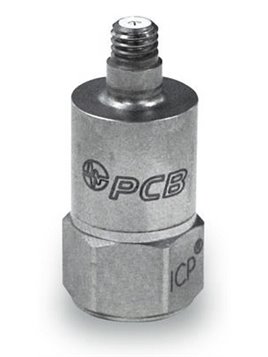

    PCB-320C04

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 6,000 Hz,
  • 10-32 female connector above

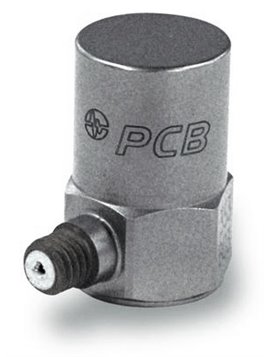

    PCB-320C03

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 6,000 Hz,
  • 10-32 female connector on the side

    PCB-355M102

    • ICP® high-temperature vibration sensor,
    • Continuous use temperature up to 163 ° C,
    • With through hole,
    • With built-in low-pass filter,
    • Masseisoliert,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 1 … 7,000 Hz,
    • Mounting with M4 screw,
    • 10-32 female connector on the side
