Can be used universally

For universal use

Universally applicable piezoelectric force sensors measure dynamic and quasistatic tensile, compressive and impact forces with rise times of less than 10 μs. The high rigidity and robust quartz measuring elements ensure stable operation even when used industrially. In addition to models with ICP® technology, the model PCB-218C also offers an alternative with charge output.

Showing 1-6 of 6 item(s)
Showing 1-6 of 6 item(s)

Active filters

PCB-218C

  • Universally applicable force sensor with charge output,
  • Range 2,224 … 22,240 N,
  • Sensitivity 4.05 pC/N,
  • Upper limit frequency 36,000 Hz,
  • 10-32 female connector on the side

    PCB-208C05

  • Universally applicable ICP® power sensor,
  • Range 2,224 … 22,240 N,
  • Sensitivity 225 mV / kN,
  • Frequency range 0.01 … 36,000 Hz,
  • 10-32 female connector on the side

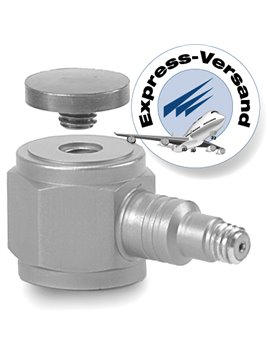

    PCB-208C04

  • Universally applicable ICP® power sensor,
  • Range 2,224 … 4.448 N,
  • Sensitivity 1.12 mV / N,
  • Frequency range 0.01 … 36,000 Hz,
  • 10-32 female connector on the side

    PCB-208C03

  • Universally applicable ICP® power sensor,
  • Measuring range 2.224 N,
  • Sensitivity 2.25 mV / N,
  • Frequency range 0.0003 … 36,000 Hz,
  • 10-32 female connector on the side

    PCB-208C02

  • Universally applicable ICP® power sensor,
  • Measuring range 445 N,
  • Sensitivity 11,2 µV / N,
  • Frequency range 0.001 … 36,000 Hz,
  • 10-32 female connector on the side

    PCB-208C01

  • Universally applicable ICP® power sensor,
  • Measuring range 44.5 N,
  • Sensitivity 112 mV / N,
  • Frequency range 0.01 … 36,000 Hz,
  • 10-32 female connector on the side
