Modal analysis

Modal analysis

These low-cost shear accelerometers with sensitivities of 100, 500 and 1,000 mV / g are ideally suited for multi-channel measurements in structural investigations. For this reason, all models are optionally available with TEDS memory chip.
The cube shape, the overload protection of 5,000 g and the mounting accessories facilitate handling.

Showing 1-4 of 4 item(s)
Showing 1-4 of 4 item(s)

Active filters

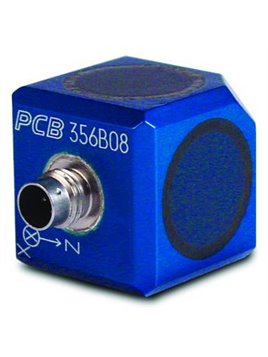

PCB-356B08

  • Triaxial ICP®-modal vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 2 … 7,000 Hz,
  • 4-pin female connector on the side

    PCB-356A16

    • Triaxial ICP®-modal vibration sensor,
    • Measurement range 50 g,
    • Sensitivity 100 mV/g,
    • Frequency range 0.5... 5,000 Hz,
    • 4-pin female connector on the side

    PCB-356B18

    • Triaxial ICP®-modal vibration sensor,
    • Measuring range 5 g,
    • Sensitivity 1,000 mV / g,.
    • Frequency range 0.5... 3,000 Hz,
    • 4-pin female connector on the side

    PCB-356A17

  • Triaxial ICP®-modal vibration sensor,
  • Measuring range 10 g,
  • Sensitivity500 mV / g,
  • Frequency range 0.5 … 3,000 Hz,
  • 4-pin female connector on the side
