ICP® shock acceleration sensors

ICP® shock acceleration sensors

Triaxial ICP® shock sensors can not be designed for measurement ranges as large as uniaxial variants. The models shown here can cover a number of shock applications. If larger measuring and overload ranges are required for three measuring axes, the use of piezoresistive high-speed sensors is recommended.

Showing 1-4 of 4 item(s)
Showing 1-4 of 4 item(s)

Active filters

PCB-350B42

  • Triaxial ICP® shock acceleration sensor
  • Mass insulated
  • With electrical and mechanical filter
    (-3 dB at 17,000 Hz)
  • Measuring range 50,000 g
  • Sensitivity 0.1 mV / g
  • Frequency range 4 ... 10,000 Hz
  • Integrated connection cable, length 1.5 meters,
    ending on a 4-pin connection socket
  • Including extension cable, length 1.5 meters,
    ending on three BNC plugs

PCB-350B41

  • Triaxial ICP® shock acceleration sensor
  • Mass insulated
  • With electrical and mechanical filter
    (3 dB at 17,000 Hz)
  • Measuring range 100,000 g
  • Sensitivity 0.05 mV / g
  • Frequency range 4 ... 10,000 Hz
  • Integrated connection cable, length 1.5 meters,
    ending on a 4-pin connection socket
  • Including extension cable, length 1.5 meters,
    ending on three BNC plugs

PCB-356B20/NC

  • Triaxial ICP® miniature vibration sensor,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • 4-pin mini connector side,
  • Without connection cable

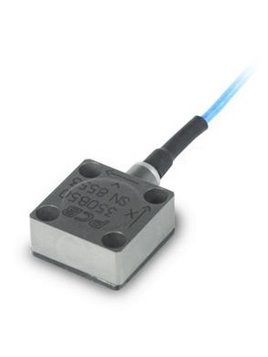

    PCB-350B50/NC

  • Triaxial ICP® shock acceleration sensor,
  • Masseisoliert,
  • With electric filters < br(-3 dB bei?20.000 Hz),
  • range 10,000 g,
  • sensitivity 0.5 mV / g,
  • frequency range 3 … 10,000 Hz,
  • integrated cable, length 1.5 m,
    ending on 4-pin female connector,
  • Without extension cable
