(3) 3-pin IDC connectors and strain relief (for use in 009M202 Series)

• Connector Style: Multi-conductor
• Connection Type: Plug with Female Contact
• Connection Type: 3-socket
• Temperature Range: -67 to 221 °F (-55 to 105 °C)

Low-noise, blue, coaxial, TFE cable, 3-ft, 10-32 coaxial plug to BNC plug, RoHS compliant

Cable assembly consists of the following components:
Model 003 cabling
Model EB connector
Model AC connector

10-32 coaxial right angle plug

• Connector Style: Coaxial
• Connector Style: Right Angle
• Connection Type: Plug (male pin)
• Coupling Thread: 10-32 female
• Temperature Range: -85 to 329 °F (-65 to 165 °C)

miniature 4-socket 8-36 plug (mates to HJ connector) **Requires special tooling for assembly – No sales except PCB locations that have the tooling and procedures.**

• Connector Style: Multi-conductor
• Connection Type: 4-socket
• Connection Type: Plug with Female Contact
• Temperature Range: -65 to 356 °F (-54 to 180 °C)

Calibration of 240 series dynamic strain sensors (complies with ISO 10012-1 & NIST-traceable)

miniature 4-pin 8-36 jack (mates to EH connector) **Requires special tooling for assembly–No sales except PCB locations that have the tooling and procedures.**

• Connector Style: Multi-conductor
• Connection Type: 4-pin
• Connection Type: Jack with Male Contact
• Coupling Thread: 8-36 female
• Temperature Range: -76 to 325 °F (-60 to 162.7 °C)

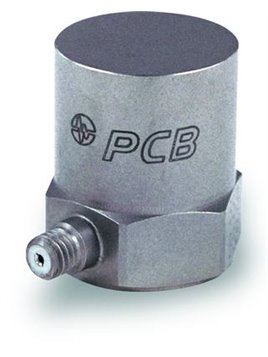

ESS high sensitivity, quartz shear ICP® accel, 100 mV/g, 1 to 4k Hz, 10-32 side conn. (to +325 F) ground isolated

• Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
• Measurement Range: ±50 g pk (±490 m/s² pk)
• Broadband Resolution: 0.0003 g rms (0.003 m/s² rms)
• Frequency Range: (±5%)1 to 4000 Hz
• Sensing Element: Quartz
• Weight: 0.7 oz (20 gm)

Pigtail leads, stripped and tinned, labeled for 3501, 3741, 3991 series

• Connector Style: Pigtail

Triple splice assembly for 4-conductor cable to (3) 1-ft coaxial cables each to a SMA plug

• Connector Style: Triple Splice
• Connector Style: SMA
• Connection Type: Plug (male pin)
• Coupling Thread: 1/4-36 female
• Temperature Range: -67 to +230 °F (-55 to +110 °C)

Allen wrench for use with M2.5 thds

Mounting stud, M14x1.25 x 1.400", BeCu for Models M204C & M214B

Triax force link, ICP®, 1000 lb (Fz), 500 lb (Fx,y), 2.5 mV/lb (z), 10 mV/lb (x,y), ground isolated

• Temperature Range: -65 to +250 °F (-54 to +121 °C)
• Electrical Connector: 4-Pin
