Triaxial mtg block, anodized aluminum (for Series 3701, 3711)

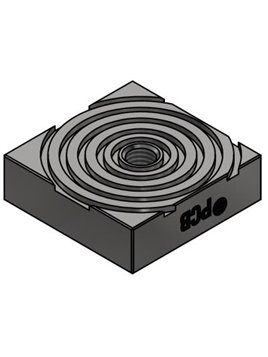

Adhesive mounting base, 1.23" square x 0.375" thk, 1/4-28 tapped hole, Stainless Steel (for Series 350B4x)

Mounting stud, 10-32 to 10-32, 0.275" long, Inconel w/shoulder

Off ground socket head cap screw assembly, 6-32 UNC-2A thd., 0.63 length, stainless steel.

Model 3210 LabMaster Portable; interface w/PC via USB; w/4-channel data acquisition & signal conditioning, and LabMaster fastener testing software. PC not included

Hand Torque Wrench, 100 ft-lb (136 Nm), 21-inch Handle, 1/2-inch Square Drive, 4-Pin PT Receptacle

• Measurement Range: 100 lbf-ft (136 Nm)
• Sensitivity: (output at rated capacity)2 mV/V

General purpose, lightweight, 2-conductor, 30 awg (7/38), twisted, shielded, FEP cable (price per foot)

• Cable Style: Multi Conductor - Shielded
• Number of Conductors: 2
• Cable Jacket Material: FEP
• Temperature Range: -130 to +392 °F (-90 to +200 °C)

Low outgassing, 4-conductor, low noise, shielded FEP cable, 2m, 4-socket plug to (3) 10-32 plugs (labeled X, Y, Z)

Rotary Torque Only Transducer, w/Auto-ID, 1,000 lbf-ft (1356 Nm), 1-inch Square Drive, 10-pin PT Receptacle

• Measurement Range: 1000 lbf-ft (1356 Nm)
• Sensitivity: 2.0 mV/V (2.0 mV/V)
• Non-Linearity: <=0.25 % FS
• Maximum Speed: 1000 RPM

Rotary Torque Angle Transducer, w/Auto-ID, 20 lbf-in (2.3 Nm), 1/4-inch Hex Drive, 10-pin PT Receptacle

• Measurement Range: 20 lbf-in (2.3 Nm)
• Sensitivity: 2.0 mV/V (2.0 mV/V)
• Non-Linearity: <=0.25 % FS
• Maximum Speed: 5000 RPM

Allen wrench (for use with 2-56 thd cap screws)

Installation/extraction tool for 115A04
