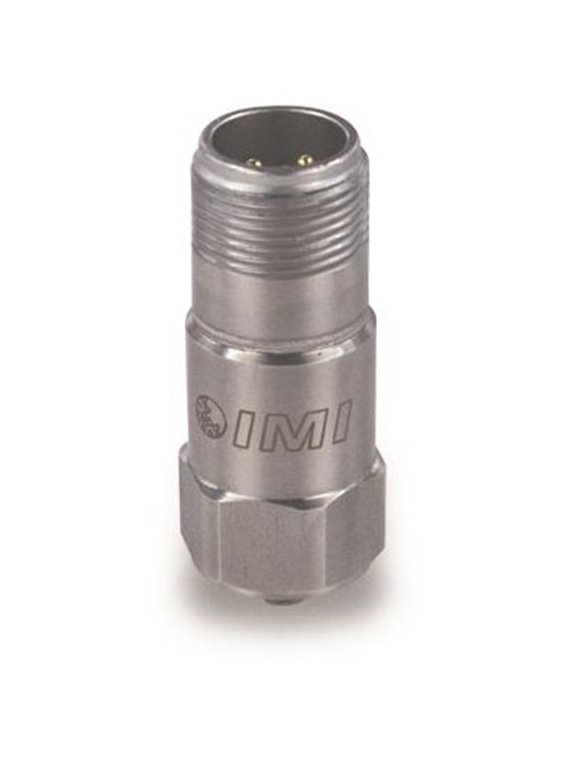

PCB-(M)603M113
- Industrial piezoelectric vibration sensor
in 3-wire technology - No ICP® sensor power required
- Measuring range 20 g
- Sensitivity 100 mV / g
- Frequency range 1.6 ... 10.000 Hz
- Supply voltage 3 ... 12V
- One-point calibration at 100 Hz
- 3-pin connector at the top
| specifications | |||
|---|---|---|---|
| basic data | English units | SI units | |
| Sensitivity (± 20%) | 100 mV/g | 10,2 mV/(m/s²) | [1] |
| measuring range | ±20 g | ±196 m/s² | |
| Frequency range (± 3 dB) | 96 … 600.000 cpm | 1,6 … 10.000 Hz | [4] |
| resonant frequency | 1.500 kcpm | 25.000 Hz | [2] |
| Broadband resolution (1 ... 10,000 Hz) | 1,5 mg | 15 mm/s² | [2] |
| linearity error | ±1 % | [3] | |
| Lateral acceleration sensitivity | ≤7 % | ||
| Operating conditions | |||
| Overload limit (shock) | 5.000 g pk | 49.050 m/s² pk | |
| temperature range | -65 … 250 °F | -54 … 121 °C | |
| protection | IP68 | ||
| Technical characteristics | |||
| Settling time (within ± 1% of the bias voltage) | ≤5,0 s | ||
| discharging | ≥0,1 s | ||
| supply voltage | 3 … 12 VDC | ||
| output impedance | <100 Ω | ||
| Bias voltage | 1,5 … 6,0 VDC | ||
| Spectral noise (10 Hz) | 18 µg/√Hz | 176,6 (µm/s²)/√Hz | [2] |
| Spectral noise (100 Hz) | 4 µg/√Hz | 39,2 (µm/s²)/√Hz | [2] |
| Spectral noise (1,000 Hz) | 2 µg/√Hz | 19,6 (µm/s²)/√Hz | [2] |
| Electrical insulation (housing) | >100 MΩ | ||
| Physical properties | |||
| Size - hexagon | 11/16 in | 18 mm | |
| Size - height | 1,86 in | 47,2 mm | |
| Mass | 2,0 oz | 56.7 grams | |
| mounting thread | 1/4 "-28 female thread | no metric equivalent | [5] |
| Montagedrehmoment | 2 … 5 ft-lb | 2,7 … 6,8 Nm | |
| sensor element | ceramics | ||
| Geometry of the sensor element | Scherprinzip | ||
| housing material | stainless steel | ||
| seal | Hermetically sealed | ||
| Electrical connection | 3-Pin MIL-C-5015 | ||
| connection | Above | ||
| Electrical connection (pin A) | Supply positive (+) | ||
| Electrical connection (pin B) | Mass | ||
| Electrical connection (pin C) | Signal | ||
| Hints | |||
|---|---|---|---|
| [1] | Conversion factor 1 g = 9,81 m / s² | ||
| [2] | typically, | ||
| [3] | Zero-based balancing line, determined by the least squares method | ||
| [4] | Upper limit frequency tolerance: ± 10% | ||
| [5] | No equivalent in SI units | ||
| included supply | ||
|---|---|---|
| 081A40 | Mounting bolt with 1/4 "-28 thread | (1) |
| ICS-2 | One-point calibration at 100 Hz (traceable to NIST) | (1) |
