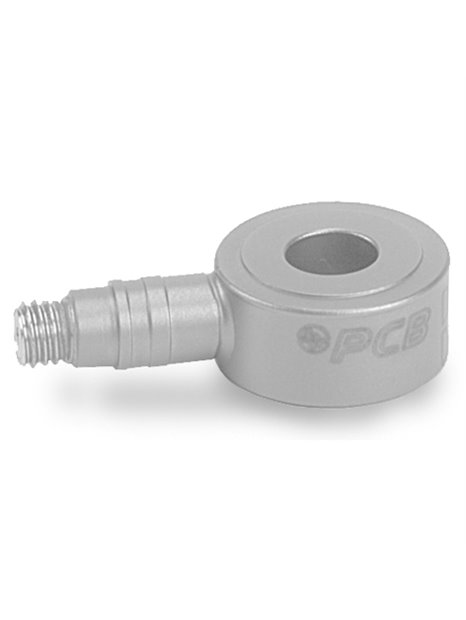

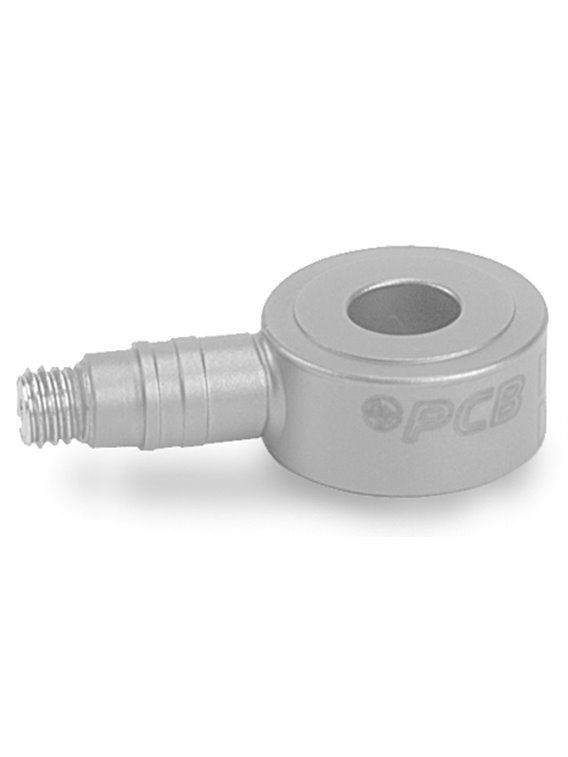

PCB-201B01
zoom_out_map

PCB-201B01

  • ICP® power measurement washer,
  • Measuring range 44.5 N,
  • Sensitivity 112 mV / N,
  • Frequency range 0.01 … 90,000 Hz,
  • 10-32 female connector on the side
  • basic data
    sensitivity (±15%) /500 mV / lb 112.405 mV / kN
    measuring range (pressure) 10 lb 0,04448 kN
    Maximum permissible static load (force) 60 lb 0,267 kN
    wide band resolution 0,0002 lb RMS 0,0008896 N RMS [1]
    lower limiting frequency (-5%) 0.01 Hz [3]
    upper frequency limit 90,000 Hz [4]
    linearity ≤ 1% FS [2]
    conditions
    temperature range -65 … 250 ° F -54 … 121 ° C
    Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C
    technical
    discharging charging time constant (at Room temperature) ≥ 50 s
    supply 20 … 30 V DC
    Constant power supplyOn the side
    Notes
    [1] typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] calculated on the basis of discharging charging time constant
    [4] suppose value determined on the basis of solid state Dynamics calculations
    [5] details: see PCBs Declaration of conformance PS023
    equipment
    080A82 grease -1
    081A11 mounting bolts, 10-32 x 0,730 ", BeCu -1
    082 B 01 washer -1
    083 B 01 Mounting sleeve -1
    M081A11 mounting bolt, M5 x 0.8 x 0,730 ", BeCu -1
    M083B01 mounting sleeve -1
    (S) negative output polarity
    (W) waterproof cable
    wiring sealed cable connection
    Cable outletOn the side
    PCB-201B01

    Specific References

    Download

    201B01_drawing_1.PDF

    Technical drawing 1

    Download (102.54k)

    201B01_drawing_2.PDF

    Technical drawing 2

    Download (103.41k)

    201B01_manual.PDF

    Operating instructions

    Download (1.39M)

    201B01_specs.PDF

    Technical data sheet

    Download (429.09k)
