List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1609-1620 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1609-1620 of 1981 item(s)

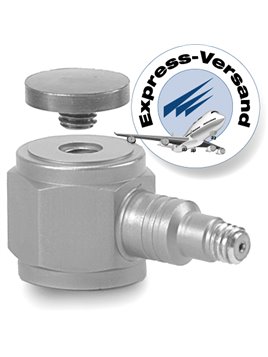

PCB-208C02
0

PCB-208C02

  • Universally applicable ICP® power sensor,
  • Measuring range 445 N,
  • Sensitivity 11,2 µV / N,
  • Frequency range 0.001 … 36,000 Hz,
  • 10-32 female connector on the side
      • PCB-208C03
      0

      PCB-208C03

    • Universally applicable ICP® power sensor,
    • Measuring range 2.224 N,
    • Sensitivity 2.25 mV / N,
    • Frequency range 0.0003 … 36,000 Hz,
    • 10-32 female connector on the side
        • PCB-208C04
        0

        PCB-208C04

      • Universally applicable ICP® power sensor,
      • Range 2,224 … 4.448 N,
      • Sensitivity 1.12 mV / N,
      • Frequency range 0.01 … 36,000 Hz,
      • 10-32 female connector on the side
          • PCB-208C05
          0

          PCB-208C05

        • Universally applicable ICP® power sensor,
        • Range 2,224 … 22,240 N,
        • Sensitivity 225 mV / kN,
        • Frequency range 0.01 … 36,000 Hz,
        • 10-32 female connector on the side
            • PCB-218C
            0

            PCB-218C

          • Universally applicable force sensor with charge output,
          • Range 2,224 … 22,240 N,
          • Sensitivity 4.05 pC/N,
          • Upper limit frequency 36,000 Hz,
          • 10-32 female connector on the side
              • PCB-(M)231B
              0

              PCB-(M)231B

            • Force measuring element with charge output,
            • Range 4.448 … 22,240 N,
            • Sensitivity 4.05 pC/N,
            • Upper frequency limit 15,000 Hz,
            • 10-32 female connector on the side
                • PCB-(M)234B
                0

                PCB-(M)234B

                • Force measuring element with charge output,
                • Range 35.6 … 111 kN,
                • Sensitivity 4.05 pC/N,
                • Upper frequency limit 8,000 Hz,
                • 10-32 female connector on the side
                  PCB-(M)260A01
                  1

                  PCB-(M)260A01

                • Triaxial ICP® power sensor,
                • Measuring range (Z axis) 4.45 kN,
                • Measuring range (X - and Y-axes) 2.22 kN,
                • Sensitivity (Z-axis) 0.56 mV / N,
                • Sensitivity (X - and Y-axes) 2.25 mV / N,
                • Frequency range (Z axis) 0.01 … 90,000 Hz,
                • Frequency range (X - and Y-axes) 0.001 … 90,000 Hz,
                • 4-pin female connector on the side
                    • PCB-(M)260A02
                    0

                    PCB-(M)260A02

                  • Triaxial ICP® power sensor,
                  • Measuring range (Z axis) 4.45 kN,
                  • Measuring range (X - and Y-axes) 4.45 kN,
                  • Sensitivity (Z-axis) 0.56 mV / N,
                  • Sensitivity (X - and Y-axes) 1.12 mV / N,
                  • Frequency range (Z axis) 0.01 … 90,000 Hz,
                  • Frequency range (X - and Y-axes) 0.001 … 90,000 Hz,
                  • 4-pin female connector on the side
                      • PCB-(M)260A03
                      0

                      PCB-(M)260A03

                    • Triaxial ICP® power sensor,
                    • Measuring range (Z axis) 44.5 kN,
                    • Measuring range (X - and Y-axes) 17.8 kN,
                    • Sensitivity (Z-axis) 0.06 mV / N,
                    • Sensitivity (X - and Y-axes) 0.28 mV / N,
                    • Frequency range (Z axis) 0.01 … 39,000 Hz,
                    • Frequency range (X - and Y-axes) 0.001 … 39,000 Hz,
                    • 4-pin female connector on the side
                        • PCB-(M)260A11
                        0

                        PCB-(M)260A11

                      • Triaxial force sensor with charge output,
                      • Measuring range (Z axis) 4.45 kN,
                      • Measuring range (X - and Y-axes) 2.22 kN,
                      • Sensitivity (Z-axis) 3.4 pC/N,.
                      • Sensitivity (X - and Y-axes) 7.2 pC/N,.
                      • Upper frequency limit 90,000 Hz,.
                      • Three 10-32 connectors on the side
                          • PCB-(M)260A12
                          1

                          PCB-(M)260A12

                          • Triaxial force sensor with charge output,
                          • Measuring range (Z axis) 4.45 kN,
                          • Measuring range (X - and Y-axes) 4.45 kN,
                          • Sensitivity (Z-axis) 3.4 pC/N,.
                          • Sensitivity (X - and Y-axes) 7.2 pC/N,.
                          • Upper frequency limit 90,000 Hz,.
                          • Three 10-32 connectors on the side
