List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1621-1632 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1621-1632 of 1981 item(s)
PCB-(M)260A13
1

PCB-(M)260A13

  • Triaxial force sensor with charge output,
  • Measuring range (Z axis) 44.5 kN,
  • Measuring range (X - and Y-axes) 17.7 kN,
  • Sensitivity (Z-axis) 3.4 pC/N,.
  • Sensitivity (X - and Y-axes) 7.2 pC/N,.
  • Upper frequency limit 39,000 Hz,.
  • Three 10-32 connectors on the side

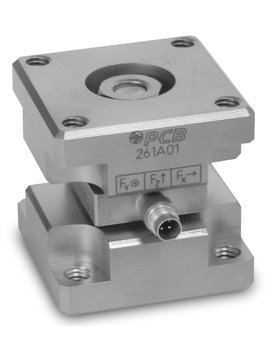

      • PCB-(M)261A01
      0

      PCB-(M)261A01

      • Triaxial ICP® power measurement element
      • Measuring range (Z axis) 4.45 kN,
      • Measuring range (X - and Y-axes) 2.22 kN,
      • Sensitivity (Z-axis) 0.56 mV / N,
      • Sensitivity (X - and Y-axes) 2.25 mV / N,
      • Frequency range (Z axis) 0.01 … 10,000 Hz,
      • Frequency range (X - and Y-axes) 0.001 … 10,000 Hz,
      • 4-pin female connector on the side
        PCB-(M)261A02
        0

        PCB-(M)261A02

      • Triaxial ICP® power measurement element
      • Measuring range (Z axis) 4.45 kN,
      • Measuring range (X - and Y-axes) 4.45 kN,
      • Sensitivity (Z-axis) 0.56 mV / N,
      • Sensitivity (X - and Y-axes) 1.12 mV / N,
      • Frequency range (Z axis) 0.01 … 10,000 Hz,
      • Frequency range (X - and Y-axes) 0.001 … 10,000 Hz,
      • 4-pin female connector on the side
          • PCB-(M)261A03
          0

          PCB-(M)261A03

        • Triaxial ICP® power measurement element
        • Measuring range (Z axis) 44.5 kN,
        • Measuring range (X - and Y-axes) 17.8 kN,
        • Sensitivity (Z-axis) 0.06 mV / N,
        • Sensitivity (X - and Y-axes) 0.28 mV / N,
        • Frequency range (Z axis) 0.01 … 10,000 Hz,
        • Frequency range (X - and Y-axes) 0.001 … 10,000 Hz,
        • 4-pin female connector on the side
            • PCB-(M)121A23
            0

            PCB-(M)121A23

          • ICP® pressure sensor with stainless steel membrane,
          • For industrial applications,
          • Measuring range 34.473 kPa,
          • Sensitivity 0.145 mV / kPa,
          • Lower limiting frequency 0.005 Hz,
          • 2-pin connector
              • PCB-(M)124A24
              0

              PCB-(M)124A24

            • ICP® pressure sensor with INVAR-membrane,
            • For rocket engines,
            • Water cooled,
            • Measuring range 6,900 kPa,
            • Sensitivity 0.72 mV / kPa,
            • 10-32 female connector
                • PCB-(M)132A31
                1

                PCB-(M)132A31

              • Miniature-ICP® pressure sensor,
              • For high-frequency time-of-arrival measurements,
              • Measuring range 345 kPa,
              • Sensitivity 20.3 mV / kPa,
              • Lower limiting frequency 11,000 Hz,
              • Integrated cable, length 0.6 m,
                ending on stripped and tinned ends,
              • including 10-32 soldering adapter
                  • PCB-(M)132A35
                  0

                  PCB-(M)132A35

                  • Miniature-ICP® pressure sensor,
                  • For high-frequency time-of-arrival measurements,
                  • Measuring range 330 kPa,
                  • Sensitivity 20.3 mV / kPa,
                  • Lower limiting frequency 11,000 Hz,
                  • Integrated cable, length 0.6 m, ending on stripped and tinned ends,
                  • including 10-32 soldering adapter
                    PCB-(M)132A36
                    0

                    PCB-(M)132A36

                  • Miniature-ICP® pressure sensor,
                  • For high frequency time-of-arrival measurements
                    ,
                  • measuring range 345 kPa,
                  • sensitivity 20.3 mV / kPa,
                  • lower limiting frequency 11,000 Hz,
                  • 10-32 socket
                      • PCB-(M)132A37
                      0

                      PCB-(M)132A37

                    • Miniature-ICP® pressure sensor,
                    • For high-frequency time-of-arrival measurements,
                    • Measuring range 345 kPa,
                    • Sensitivity 20.3 mV / kPa,
                    • Lower limiting frequency 11,000 Hz,
                    • Integrated cable, length 0.6 m,
                      ending on stripped and tinned ends
                        • PCB-(M)134A02
                        1

                        PCB-(M)134A02

                      • Tourmaline-pressure sensor with charge output,
                      • For shock waves,
                      • Measuring range 138,000 kPa,
                      • Sensitivity 0.018 pC/kPa,
                      • 10-32 female connector
                          • PCB-(M)134A22
                          1

                          PCB-(M)134A22

                        • Tourmaline-ICP® pressure sensor,
                        • For shock waves,
                        • Measuring range 34,500 kPa,
                        • Sensitivity 0.145 mV / kPa < br(in Kombination mit Inline-Verstärker 402A02),
                        • 10-32 socket
