PCB-208C05
zoom_out_map

PCB-208C05

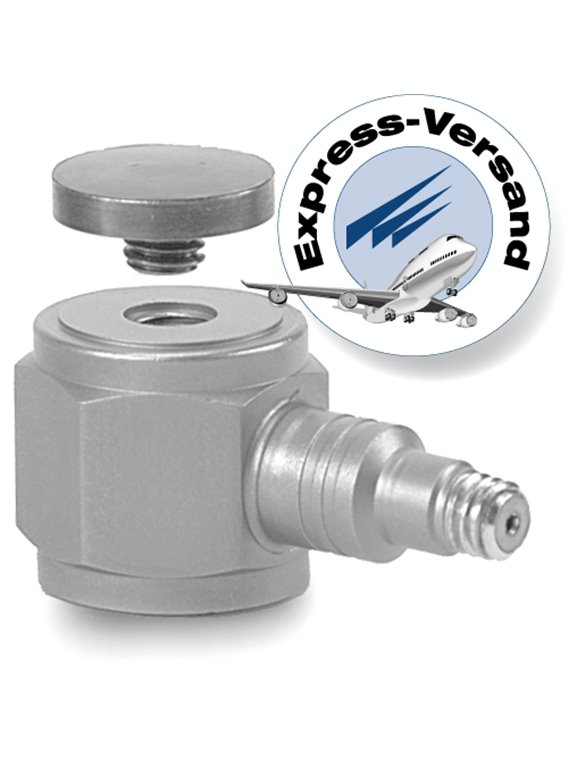

  • Universally applicable ICP® power sensor,
  • Range 2,224 … 22,240 N,
  • Sensitivity 225 mV / kN,
  • Frequency range 0.01 … 36,000 Hz,
  • 10-32 female connector on the side
  • basic data
    sensitivity (±15%) 1 mV / lb 224,82 mV / kN
    measuring range (pressure) 5,000 lb 22.24 kN
    Measuring range (traction) 500 lb 2,224 kN
    maximum permissible static load (force) 8,000 lb 35,59 kN
    maximum static force (traction) 500 lb 2,224 kN
    wide band resolution 0.05 lb RMS 0,222 N RMS [1]
    Lower limiting frequency (-5%) 0.0003 Hz [3]
    upper limit frequency 36,000 Hz [4]
    linearity error ≤ 1% FS [2]
    conditions
    temperature range -65 … 250 ° F -54 … 121 ° C
    temperature coefficient Temperature coefficient of sensitivity ≤0,05 %/°F ≤0.09 %/°C
    technical properties
    discharge charge time constant (at room temperature) ≥ 2,000 s
    Supply 20 … 30 V DC
    constant power supply 2 … 20 mA
    Output impedance ≤ 100 Ω
    Bias voltage 8 … 14 V DC
    Spectral noise (1 Hz) 0,00168 lb / √ Hz 0,00750 N / √ Hz [1]
    spectral noise (10 Hz) 0,00112 lb / √ Hz 0,00501 N / √ Hz [1]
    spectral noise (100 Hz) 0,000459 lb / √ Hz 0,00205 N / √ Hz [1]
    spectral noise (1,000 Hz) 0,000133 lb / √ Hz 0,000592 N / √ Hz [1]
    (Pressure) output polarity positive
    physical properties
    rigidity 6 lb/µin 1.05 kN/µm [1]
    Size - hex 0.625 in 15.88 mm
    size - height 0.625 in 15.88 mm
    Size - diameter of the measuring surface 0.500 in 12.7 mm
    dimensions 0.80 oz 22.7 grams
    parts usematerial stainless steel
    sealing hermetically sealed
    electrical connection 10-32-coaxial socket
    Connection position side
    mounting thread 10-32 tapped no equivalent
    Mounting torque (recommended) 16 … 20 in-lb 181 … 226 NCM
    notes
    [1] typically
    [2] Zero-balance just, determined using the method of least squares
    [3] calculated on the basis of discharging charging time constant
    [4] Accepted value determined on the basis of solid state Dynamics calculations
    [5] details: see PCBs Declaration of conformance PS023
    equipment
    080A81 adhesivefor thread safety -1
    081 B 05 mounting bolts (10-32 on 10-32) 2
    084A03 Premium cap -1
    M081A62 mounting bolts, 10-32 to M6 x 1, BeCu, with shoulder 2
    (N) negative Ausgangspolarit ät
    (W) waterproof cable connection
