List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1597-1608 of 1981 item(s)
Showing 1597-1608 of 1981 item(s)

PCB-(M)221B01

  • ICP® force measuring element,
  • Measuring range 44.5 N,
  • Sensitivity 112 mV / N,
  • Frequency range 0.01 … 15,000 Hz,
  • 10-32 female connector on the side
    • PCB-(M)221B02

    • ICP® force measuring element,
    • Measuring range 445 N,
    • Sensitivity 11,2 µV / N,
    • Frequency range 0.006 … 15,000 Hz,
    • 10-32 female connector on the side
      • PCB-(M)221B03

      • ICP® force measuring element,
      • Measuring range 2.224 N,
      • Sensitivity 2.25 mV / N,
      • Frequency range 0.002 … 15,000 Hz,
      • 10-32 female connector on the side
        • PCB-(M)221B04

        • ICP® force measuring element,
        • Measuring range 4.448 N,
        • Sensitivity 1.12 mV / N,
        • Frequency range 0.001 … 15,000 Hz,
        • 10-32 female connector on the side
          • PCB-(M)221B05

          • ICP® force measuring element,
          • Range 4.448 … 22,240 N,
          • Sensitivity 225 mV / kN,
          • Frequency range 0.0003 … 15,000 Hz,
          • 10-32 female connector on the side
            • PCB-(M)222B

            • ICP® force measuring element,
            • Range 11,1 … 26.7 kN,
            • Sensitivity 202 mV / kN,
            • Frequency range 0.0003 … 12.000 Hz,
            • 10-32 female connector on the side
              • PCB-(M)223B

              • ICP® force measuring element,
              • Range 17.8 … 53 kN,
              • Sensitivity 94 mV / kN,
              • Frequency range 0.0003 … 10,000 Hz,
              • 10-32 female connector on the side
                • PCB-(M)224C

                • ICP® force measuring element,
                • Range 35.6 … 129 kN,
                • Sensitivity 45 mV / kN,
                • Frequency range 0.0003 … 8,000 Hz,
                • 10-32 female connector on the side
                  • PCB-(M)225C

                  • ICP® force measuring element,
                  • Measuring range 53 … 156 kN,
                  • Sensitivity 31.5 mV / kN,
                  • Frequency range 0.0003 … 6,000 Hz,
                  • 10-32 female connector on the side
                    • PCB-(M)226C

                    • ICP® force measuring element,
                    • Measuring range 89 …?200 ?N,
                    • Sensitivity 24.7 mV / kN,
                    • Frequency range 0.0003 … 5,000 Hz,
                    • 10-32 female connector on the side
                      • PCB-(M)227C

                      • ICP® force measuring element,
                      • Range-133 … 222 kN,
                      • Sensitivity 22.5 mV / kN,
                      • Frequency range 0.0003 … 4,000 Hz,
                      • 10-32 female connector on the side

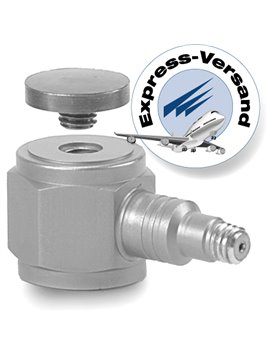

                        • PCB-208C01

                        • Universally applicable ICP® power sensor,
                        • Measuring range 44.5 N,
                        • Sensitivity 112 mV / N,
                        • Frequency range 0.01 … 36,000 Hz,
                        • 10-32 female connector on the side
