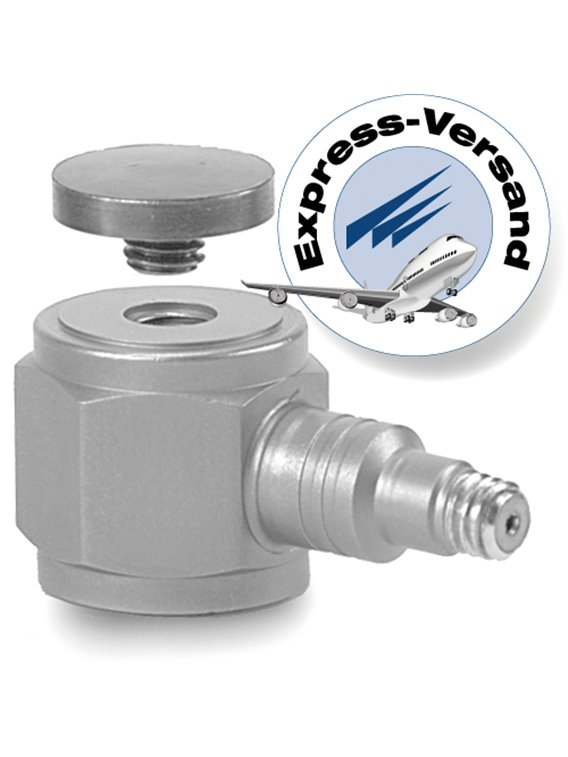

PCB-208C02
zoom_out_map

PCB-208C02

  • Universally applicable ICP® power sensor,
  • Measuring range 445 N,
  • Sensitivity 11,2 µV / N,
  • Frequency range 0.001 … 36,000 Hz,
  • 10-32 female connector on the side
  •

    basic data
    sensitivity (±15%) 50 mV / lb 11.241 mV / kN

    (pressure) measuring range 100 lb 0,4448 kN

    Measuring range (traction) 100 lb 0,4448 kN

    maximum permissible static load (force) 600 lb 2,669 kN

    maximum static force (traction) 500 lb 2,224 kN

    wide band resolution 0.001 lb RMS 0.004 N RMS [1]

    Lower limiting frequency (-5%) 0.001 Hz   [4]

    upper limit frequency 36,000 Hz   [3]

    linearity error ≤ 1% FS   [2]
    conditions
    temperature range -65 … 250 ° F -54 … 121 ° C

    temperature coefficient Temperature coefficient of sensitivity ≤0,05 %/°F ≤0.09 %/°C
    technical properties
    discharge charge time constant (at room temperature) ≥ 500 s

    Supply 20 … 30 V DC

    constant power supply 2 … 20 mA

    Output impedance ≤100 Ω

    Bias voltage 8 … 14 V DC

    Spectral noise (1 Hz) 0,000135 lb / √Hz 0,000603 N / √Hz [1]

    spectral noise (10 Hz) 0,0000276 lb / √Hz 0,000123 N / √Hz [1]

    spectral noise (100 Hz) 0,00000956 lb / √Hz 0,0000427 N / √Hz [1]

    spectral noise (1,000 Hz) 0,00000212 lb /. ? Hz 0,00000946 N / √Hz [1]

    (pressure) output polarity positive
    physical properties
    stiffness 6 lb/µin 1.05 kN/µm [1]

    size - hex 0.625 in 15.88 mm

    size - height 0.625 in 15.88 mm

    084A03 premium cap -1

    M081A62 Mounting bolts, 10-32 to M6 x 1, BeCu, with shoulder 2
    (S) negative output polarity

    (W) waterproof cable connection

    PCB-208C02

    Specific References

    Download

    208C02_drawing.PDF

    Technical drawing

    Download (667.84k)

    208C02_manual.PDF

    Operating instructions

    Download (1.84M)

    208C02_specs.PDF

    Technical data sheet

    Download (82.7k)
