Miniature acceleration sensors accelerometers

Miniature acceleration sensors

Accelerometers with ceramic sensor elements are characterized by excellent resolution and high charge efficiency. These properties make it possible to realize even small sensor designs. Triaxial miniature acceleration transducers (mass from 1 gram and up) are used for measurements on small and light structures, where the vibration behavior must not be falsified by additionally applied large transducer masses. With triaxial miniature transducers, frequencies of up to 10 kHz can be measured.

Showing 13-24 of 34 item(s)
Sort by:
Best sellers Relevance Name, A to Z Name, Z to A
Showing 13-24 of 34 item(s)

Active filters

PCB-J356A45
2

PCB-J356A45

  • Triaxial ICP® miniature vibration sensor
  • Mass-insulated housing
  • With TEDS 1.0
  • Measurement range 50 g
  • Sensitivity 100mV / g
  • Frequency range 0.4... 10,000 Hz
  • Dimensions 4.2 grams
  • 4-pin female connector on the side
    PCB-356A04
    1

    PCB-356A04

    • Triaxial ICP®/IEPE miniatur vibration sensor
    • Operating temperature up to 163 ° C
    • Measuring range 5,000 g
    • Sensitivity 1 mV / g
    • Frequency range 1… 6,000 Hz
    • Integrated, highly flexible connection cable, length 1.5 meters,
    • ending on 4-pin connector
    • including extension cable, length 1.5 m, ending to three BNC

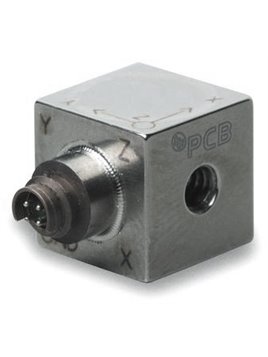

      PCB-356B20/NC
      0

      PCB-356B20/NC

    • Triaxial ICP® miniature vibration sensor,
    • Measuring range 5,000 g,
    • Sensitivity 1 mV / g,
    • Frequency range 2 … 7,000 Hz,
    • Weight 4 grams,
    • 4-pin mini connector side,
    • Without connection cable
        • PCB-356A12/NC
        1

        PCB-356A12/NC

        • Triaxial ICP® miniature vibration sensor,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • Frequency range 0.5... 5,000 Hz,
        • Weight 4 grams.
        • Integrated cable, length 1.5 m,
          ending on 4-pin female connector.
        • Without extension cable
          PCB-356A13
          0

          PCB-356A13

          • Triaxial ICP® miniature vibration sensor,
          • Mass 1 gram,.
          • Measuring range 1000 g,
          • Sensitivity 5 mV / g,.
          • Frequency range 2... 8,000 Hz,
          • Integrated light connection cable, length 1.5 m,
            ending on 4-pin female connector.
          • Including extension cable, length 1.5 m,
            ending on three BNC plugs
            PCB-339A30
            0

            PCB-339A30

          • Triaxial ICP® high-temperature vibration sensor,
          • Continuous use temperature up to 163 ° C,
          • Very low temperature coefficient,
          • With built-in low-pass filter,
          • Measuring range 500 g
          • Sensitivity 10 mV / g,
          • Frequency range 2 … 8,000 Hz,
          • Weight 4 grams,
          • 4-pin mini connector side,
          • Including connection cable, length 3 m,
            ending to three BNC
              • PCB-356A13/NC
              0

              PCB-356A13/NC

              • Triaxial ICP® miniature vibration sensor,
              • Mass 1 gram,
              • Measuring range 1000 g,
              • Sensitivity 5 mV / g,
              • Frequency range 2 … 8,000 Hz,
              • Integrated light connection cable, length 1.5 m, ending on 4-pin female connector,
              • without extension cable
                PCB-339A30/NC
                1

                PCB-339A30/NC

              • Triaxial ICP® high-temperature vibration sensor,
              • Continuous use temperature up to 163 ° C,
              • Very low temperature coefficient,
              • With built-in low-pass filter,
              • Measuring range 500 g
              • Sensitivity 10 mV / g,
              • Frequency range 2 … 8,000 Hz,
              • Weight 4 grams,
              • 4-pin mini connector side,
              • Without connection cable
                  • PCB-356A34
                  0

                  PCB-356A34

                  • Triaxial ICP® miniature vibration sensor,
                  • Measuring range 100 g,
                  • Sensitivity 50 mV / g,.
                  • Frequency range 1... 4,000 Hz,
                  • 4-pin female connector on the side
                    PCB-339A31/NC
                    1

                    PCB-339A31/NC

                  • Triaxial ICP® high-temperature vibration sensor,
                  • Continuous use temperature up to 163 ° C,
                  • Very low temperature coefficient,
                  • With built-in low-pass filter,
                  • Measuring range 500 g
                  • Sensitivity 10 mV / g,
                  • Frequency range 2 … 6,000 Hz,
                  • Weight 5.5 grams,
                  • 4-pin mini connector side,
                  • Without connection cable
                      • PCB-356A36
                      1

                      PCB-356A36

                      • Triaxial ICP® miniature vibration sensor,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,.
                      • Frequency range 1... 4,000 Hz,
                      • Dimensions 4.3 grams.
                      • 4-pin female connector on the side
                        PCB-339A32/NC
                        1

                        PCB-339A32/NC

                      • Triaxial ICP® high-temperature vibration sensor,
                      • Continuous use temperature up to 163 ° C,
                      • Very low temperature coefficient,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,
                      • Frequency range 2 … 8,000 Hz,
                      • Mass 3.6 grams,
                      • 4-pin mini connector side,
                      • Without connection cable
