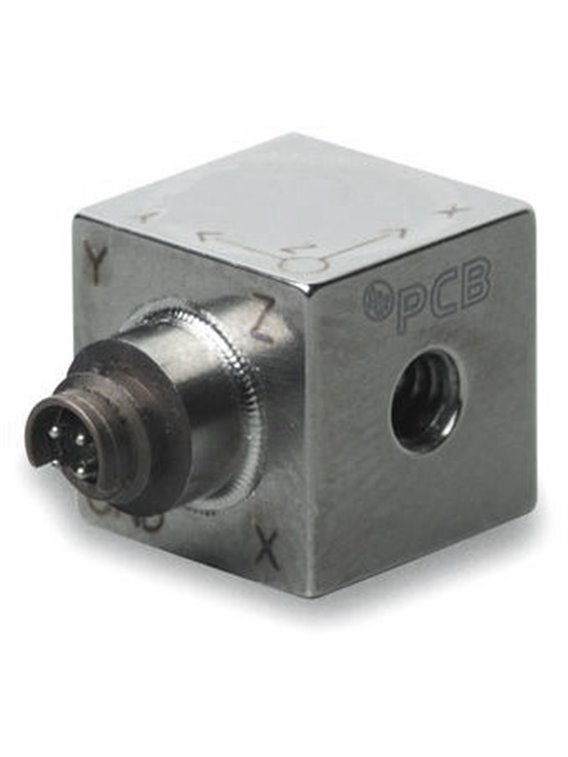

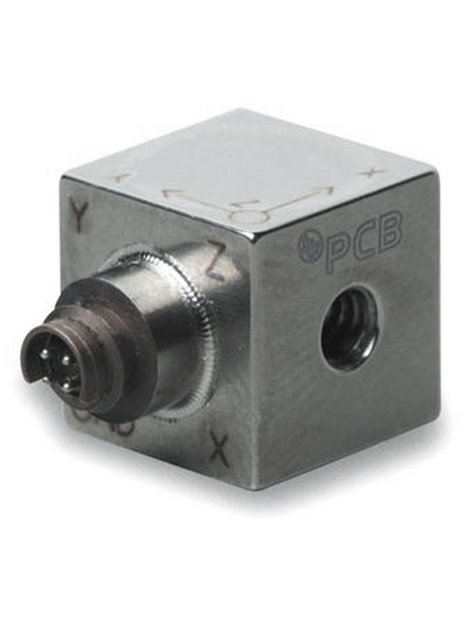

PCB-356B20/NC
| basic data | |||
| sensitivity (±20%) | 1.0 mV / g | 0.1 mV/(m/s²) | |
| range | ±5. 000 g PK | ±49. 050 m/s² pk | |
| frequency (Y - and Z-axis) < br(≤5 %) | 2 … 10,000 Hz | ||
| Frequency range (X-axis) (±5%) | 2 … 7,000 Hz | ||
| resonance frequency | ≥ 55,000 Hz | ||
| Wide band resolution | 0.03 g RMS | 0.29 m/s² RMS | [2] |
| linearity error | ≤ 2.5% | [1] | |
| transverse acceleration sensitivity | ≤ 5% | ||
| conditions of use | |||
| Overload limit (shock) | ±7. 000 g pk | ±68. 600 m/s² pk | |
| temperature range (operation) | -65 … 250 ° F | -54 … 121 ° C | [3] |
| specifications | |||
| power supply | 18 … 30 V DC | ||
| Constant power supply | 2 … 20 mA | ||
| output impedance | ≤200Ω | ||
| Bias voltage | 7 … 11 V DC | ||
| Discharging charging time constant | 1.5 … 3.0 s | ||
| settling time < br(auf Bias-Spannung ±10 %) | >10s | ||
| Spectral noise (1 Hz) | 9,000 µg / √ Hz | 88.290 (µm / s ²) / √ Hz | [2] |
| spectral noise (10 Hz) | 2,500 µg / √ Hz | 24.525 (µm / s ²) / √ Hz | [2] |
| spectral noise (100 Hz) | 800 µg / √ Hz | 7.848 (µm / s ²) / √ Hz | [2] |
| spectral Noise (1,000 Hz) | 250 µg / √ Hz | 2,453 (µm / s ²) / √ Hz | [2] |
| physical properties | |||
| sensor element | ceramic | ||
| Geometry of the sensor element | shear principle | ||
| housing material | titanium | ||
| sealed | sealed close | ||
| size - height | 0.4 in | 10.2 mm | |
| size - length | 0.4 in | 10.2 mm | |
| Size - width | 0.4 in | 10.2 mm | |
| weight | 0.14 oz | 4 grams | [2] |
| wiring | 8-36 4 PIN | ||
| connection position | side | ||
| mounting screw | 5-40 female | ||
| Mounting torque | 4 … 5 in-lb | 45 … 56 NCM | |
| notes | |||
| [1] | zero-based balancing line, determined using the method of least squares | ||
| [2] | typically | ||
| [3] | the data for temperatures above 121 ° C applies only for transducers with HT option. | ||
| [4] | details:see PCBs Declaration of conformance PS023 | ||
| Accessories | |||
| 080A | adhesive mounting | -1 | |
| 080A109 | mounting wax | -1 | |
| 081A27 | mounting bolts, 5-40 on 5-40 | -1 | |
| 081A90 | mounting bolts, 10-32 on 5-40 | -1 | |
| ACS-1 T | frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the top 5% Frequency | -1 | |
| M081A27 | metric mounting bolts, 5-40 M3 x 0.50 | -1 | |
| (J) mass insulation of | |||
| frequency range (+ 5%) | 7,000 Hz | ||
| Electrical insulation | > 100,000,000 Ω | ||
| size - height | 0.44 in | 11.2 mm | |
| Size - length | 0.40 in | 10.2 mm | |
| size - width | 0.44 in | 11.2 mm | |
| dimensions | 0.16 Oz | 4.5 grams | |
| Attachment | bonding | ||
| resonance frequency | 50,000 Hz | ||
| Accessories | |||
| 080A90 | cyano | -1 | |
| 080A109 | mounting wax | -1 | |
| (HT) High temperature electronics | |||
| temperature range | -65 … 325 ° F | -54 … 163 ° C |
