Miniature acceleration sensors

Accelerometers with ceramic sensor elements are characterized by excellent resolution and high charge efficiency. These properties make it possible to realize even small sensor designs. Triaxial miniature acceleration transducers (mass from 1 gram and up) are used for measurements on small and light structures, where the vibration behavior must not be falsified by additionally applied large transducer masses. With triaxial miniature transducers, frequencies of up to 10 kHz can be measured.

Showing 25-34 of 34 item(s)

Sort by:

Showing 25-34 of 34 item(s)

PCB-356A24/NC

Triaxial ICP® miniature vibration sensor,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 1 … 9,000 Hz (up to 12,000 Hz ±10%),

mass 3.1 grams,

4-pin mini connector side,

without connection cable

PCB-356A32/NC

Triaxial ICP® miniature vibration sensor,
Measurement range 50 g,
Sensitivity 100 mV/g,
Frequency range 1... 4,000 Hz,
Dimensions 5 grams.
4-pin mini connector on the side.
Without cable

PCB-356A33

Triaxial ICP® miniature vibration sensor,
Measuring range 500 g
Sensitivity 10 mV / g,.
Frequency range 2... 7,000 Hz,
4-pin female connector on the side

PCB-356B10/NC

Triaxial ICP® miniature vibration sensor,

Measuring range 5,000 g,

Sensitivity 1 mV / g,

Frequency range 2 … 7,000 Hz,

Weight 4 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

without extension cable

PCB-(M)354C10/NC

Triaxial ICP® miniature vibration sensor,

With through hole,

Masseisoliert,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 8,000 Hz,

Mass 5 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

without extension cable

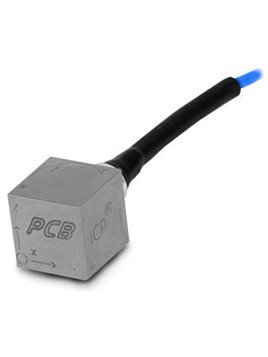

PCB-356B11/NC

Triaxial ICP® miniature vibration sensor,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 7,000 Hz,

Weight 4 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

without extension cable

PCB-356A12

Triaxial ICP® miniature vibration sensor,
Measurement range 50 g,
Sensitivity 100 mV/g,
Frequency range 0.5... 5,000 Hz,
Weight 4 grams.
Integrated cable, length 1.5 m,
ending on 4-pin female connector.
Including extension cable, length 1.5 m,
ending on three BNC plugs

PCB-356B20/NC

Triaxial ICP® miniature vibration sensor,

Measuring range 5,000 g,

Sensitivity 1 mV / g,

Frequency range 2 … 7,000 Hz,

Weight 4 grams,

4-pin mini connector side,

Without connection cable

PCB-356A12/NC

Triaxial ICP® miniature vibration sensor,
Measurement range 50 g,
Sensitivity 100 mV/g,
Frequency range 0.5... 5,000 Hz,
Weight 4 grams.
Integrated cable, length 1.5 m,
ending on 4-pin female connector.
Without extension cable

PCB-356A13

Triaxial ICP® miniature vibration sensor,
Mass 1 gram,.
Measuring range 1000 g,
Sensitivity 5 mV / g,.
Frequency range 2... 8,000 Hz,
Integrated light connection cable, length 1.5 m,
ending on 4-pin female connector.
Including extension cable, length 1.5 m,
ending on three BNC plugs
