List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 925-936 of 1981 item(s)

Sort by:

Showing 925-936 of 1981 item(s)

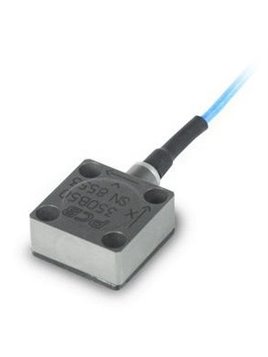

PCB-350B50

Triaxial ICP® shock acceleration sensor,

Masseisoliert,

With electric filters < br(-3 dB bei?20.000 Hz),

range 10,000 g,

sensitivity 0.5 mV / g,

frequency range 3 … 10,000 Hz,

integrated cable, length 1.5 m,
ending on 4-pin female connector,

Including extension cable, length 1.5 m,
ending to three BNC

PCB-356A44

Triaxial ICP® miniature vibration sensor,
With TEDS 1.0,
Measuring range 100 g,
Sensitivity 50 mV / g,
Frequency range 0.4... 10,000 Hz,
Dimensions 4.2 grams,
4-pin female connector on the side,

PCB-356A45

Triaxial ICP® miniature vibration sensor,
With TEDS 1.0,
Measurement range 50 g,
Sensitivity 100 mV/g,
Frequency range 0.4... 10,000 Hz,
Dimensions 4.2 grams,
4-pin female connector on the side

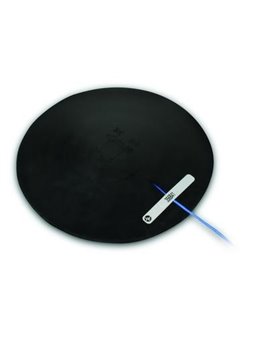

PCB-356B41

Triaxial vibration sensor seat cushion,
For measurements according to DIN EN 30.326,
Measuring range 10 g,
Sensitivity 100 mV/g,
Frequency range 0.5... 1,000 Hz,
Integrated cable, length 1.5 m,
ending on 4-pin female connector.
Including extension cable, length 1.5 m,
ending on three BNC plugs

PCB-HTJ356B01/NC

Triaxial ICP® high-temperature vibration sensor,
Mass-insulated mounting,
Continuous use temperature up to 180 ° C,
Mass 1 gram,
Measuring range 1000 g,
Sensitivity 5 mV / g,
Frequency range 2... 8,000 Hz,
Integrated cable, length 1.5 m,
ending on 4-pin female connector,
Without extension cable

PCB-350B43

Triaxial ICP® shock acceleration sensor
Ground Isolated
With electrical and mechanical filter
(-3 dB at 21,000 Hz)
Measuring range 10,000 g
Sensitivity 0.5 mV / g
Frequency range 0.4 ... 10,000 Hz
Integrated connection cable, length 1.5 meters,
ending on 4-pin connection socket
Including extension cable, length 1.5 meters,
ending on three BNC plugs

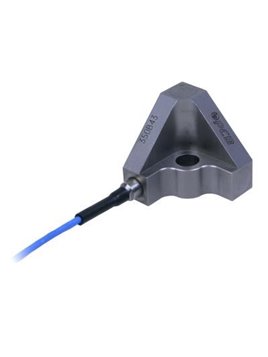

PCB-350B44

Triaxial ICP® shock acceleration sensor
Ground Isolated
With electrical and mechanical filter
(-3 dB at 21,000 Hz)
Measuring range 5,000 g
Sensitivity 1.0 mV / g
Frequency range 0.4 ... 10,000 Hz
Integrated connection cable, length 1.5 meters,
ending on 4-pin connection socket
Including extension cable, length 1.5 meters,
ending on three BNC plugs
