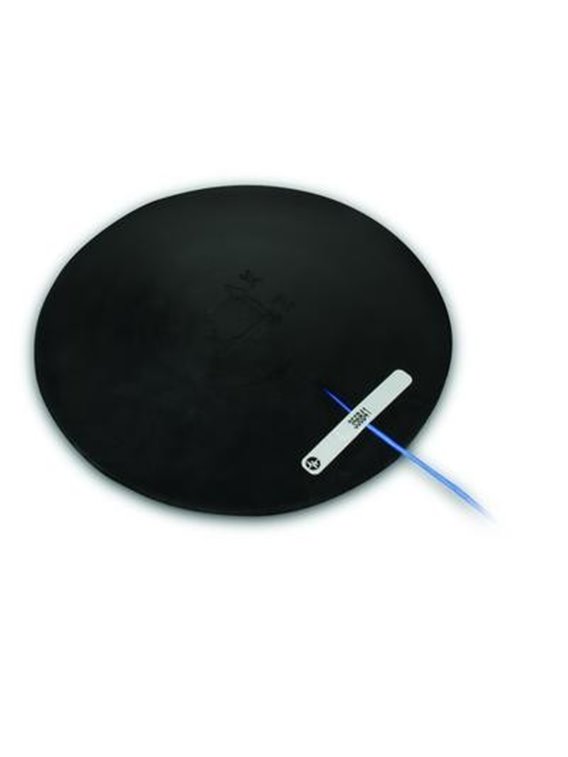

PCB-356B41

  • Triaxial vibration sensor seat cushion,
  • For measurements according to DIN EN 30.326,
  • Measuring range 10 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.5... 1,000 Hz,
  • Integrated cable, length 1.5 m,
    ending on 4-pin female connector.
  • Including extension cable, length 1.5 m,
    ending on three BNC plugs



basic data
sensitivity (±10%) 100 mV/g 10.2 mV/(m/s²)

measuring range ±10 g pk ±98 m/s 2 pk

Frequency range (±5%) 0.5... 1,000 Hz   [1]

resonance frequency ≥27. 000 Hz

wide band resolution 0.0002 g RMS 0,002 m/s² RMS [3]

linearity ≤1%   [2]

transverse acceleration sensitivity ≤5%
conditions of use
Overload limit (shock) ±2. 000 g pk ±19. 620 m/s² pk

temperature 14... 122 ° F 10... 50 ° C

temperature effect ≤ 0.10 %/°F < 0.17 %/°C [3]
specifications
power supply 6.5... 30 V DC

constant power supply 0.3... 10 mA

output impedance ≤500 Ω

Bias voltage 2.8... 4,5 V DC

discharging charging time constant 1... 3 s

settling time
(auf Bias-Spannung ±10 %)
>20 s

spectral noise (1 Hz) 50 µg/√Hz 490 (µm/s²)/√Hz [] 3]

spectral noise (10 Hz) 10 µg/√Hz 98 (µm/s²)/√Hz [3]

spectral noise (100 Hz) 4 µg/√Hz 39 (µm/s²)/√Hz [3]

Spectral noise (1,000 Hz) 2 µg/√Hz 20 (µm/s²)/√Hz [3]
physical properties
sensor element ceramic

Geometry of the sensor element Shear principle

Housing material Titanium

Sealing Hermetic

Size - diameter 7.87 in

Size - width 0.472 in 12 mm

Mass 9.6 oz 272 grams [3]

Electrical connection Integrated cable

Cable outlet On the side

Cable termination 1/4 "-28 4-pin connector

Cable length 5 ft 1.5 m

Cable type Type 010, 4-conductor shielded cable

Mounting thread 5-40 female
Notes
[1] Standard calibration to 100 Hz with a sensor in the seat cushion. Special calibration about 100 Hz with sensor built in optional.

[2] Zero-balance just, determined using the method of least squares

[3] Typically

[4] Details: see PCBs Declaration of conformance PS023
Included accessories
010 G 05 Cable -1

081A90 Mounting bolts, 10-32 on 5-40 -1

ACS-17 Calibration of amplitude and phase response, traceable to NIST by 0.5... 100 Hz -1
