List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 937-948 of 1981 item(s)
Showing 937-948 of 1981 item(s)

PCB-J356A45

  • Triaxial ICP® miniature vibration sensor
  • Mass-insulated housing
  • With TEDS 1.0
  • Measurement range 50 g
  • Sensitivity 100mV / g
  • Frequency range 0.4... 10,000 Hz
  • Dimensions 4.2 grams
  • 4-pin female connector on the side

    PCB-356A04

    • Triaxial ICP®/IEPE miniatur vibration sensor
    • Operating temperature up to 163 ° C
    • Measuring range 5,000 g
    • Sensitivity 1 mV / g
    • Frequency range 1… 6,000 Hz
    • Integrated, highly flexible connection cable, length 1.5 meters,
    • ending on 4-pin connector
    • including extension cable, length 1.5 m, ending to three BNC

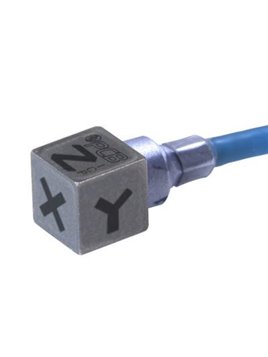

      PCB-356A04/NC

      • Triaxial ICP®/IEPE miniatur vibration sensor
      • Operating temperature up to 163 ° C
      • Measuring range 5,000 g
      • Sensitivity 1 mV / g
      • Frequency range 1… 6,000 Hz
      • Integrated, highly flexible connection cable, length 1.5 meters,
      • ending on 4-pin connector
      • Without connection cable

        PCB-356A05

        • Triaxial ICP®/IEPE miniatur vibration sensor
        • Operating temperature up to 163 ° C
        • Measuring range 20,000 g
        • Sensitivity 0.25 mV / g
        • Frequency range 1… 6,000 Hz
        • Integrated, highly flexible connection cable, length 1.5 meters,
        • ending on 4-pin connector
        • including extension cable, length 1.5 m, ending to three BNC

          PCB-356A05/NC

          • Triaxial ICP®/IEPE miniatur vibration sensor
          • Operating temperature up to 163 ° C
          • Measuring range 20,000 g
          • Sensitivity 0.25 mV / g
          • Frequency range 1… 6,000 Hz
          • Integrated, highly flexible connection cable, length 1.5 meters,
          • ending on 4-pin connector
          • Without connection cable

            PCB-350B41

            • Triaxial ICP® shock acceleration sensor
            • Mass insulated
            • With electrical and mechanical filter
              (3 dB at 17,000 Hz)
            • Measuring range 100,000 g
            • Sensitivity 0.05 mV / g
            • Frequency range 4 ... 10,000 Hz
            • Integrated connection cable, length 1.5 meters,
              ending on a 4-pin connection socket
            • Including extension cable, length 1.5 meters,
              ending on three BNC plugs

              PCB-350B42

              • Triaxial ICP® shock acceleration sensor
              • Mass insulated
              • With electrical and mechanical filter
                (-3 dB at 17,000 Hz)
              • Measuring range 50,000 g
              • Sensitivity 0.1 mV / g
              • Frequency range 4 ... 10,000 Hz
              • Integrated connection cable, length 1.5 meters,
                ending on a 4-pin connection socket
              • Including extension cable, length 1.5 meters,
                ending on three BNC plugs

                PCB-339B32/NC

                • Triaxial ICP® high temperature vibration sensor
                • Continuous operating temperature up to 163 ° C
                • Very low temperature coefficient
                • with integrated low-pass filter
                • Measuring range 500 g
                • Sensitivity 10 mV / g
                • Frequency range 2 ... 10,000 Hz
                • Mass 3.6 grams
                • 4-pin mini connector on the side
                • Without connection cable

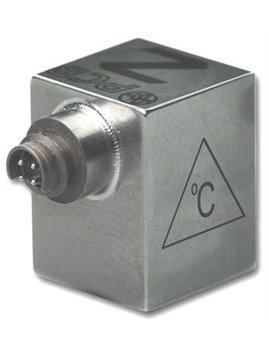

                  PCB-339A31

                • Triaxial ICP® high-temperature vibration sensor < br(Dauer-Einsatztemperatur bis 163 °C)
                  with ceramic sensor elements and low temperature coefficient,
                • measuring range 500 g,
                • sensitivity 10 mV / g,
                • frequency range 2 … 6,000 Hz,
                • weight 5.5 grams,
                • 4-pin mini connector side,
                • including connection cable, length 3 m,
                  ending to three BNC

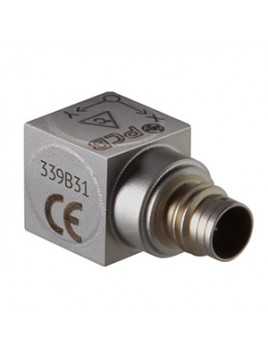

                  • PCB-339B31

                    • Triaxial ICP® high temperature vibration sensor with low temperature coefficient
                    • Permanent operating temperature up to 180 ° C
                    • Sensitivity 10 mV / g
                    • Frequency range 2… 8,000 Hz
                    • Weight 4.2 grams
                    • 4-pin connection socket on the side
                    • Including connection cable, length 3 meters, ending on three BNC plugs

                      PCB-339B31/NC

                      • Triaxial ICP® high temperature vibration sensor with low temperature coefficient
                      • Permanent operating temperature up to 180 ° C
                      • Sensitivity 10 mV / g
                      • Frequency range 2… 8,000 Hz
                      • Weight 4.2 grams
                      • 4-pin connection socket on the side

                        PCB-EX356A73

                        • Triaxial vibration sensor with charge output
                        • Temperature range -55 ... 482 ° C
                        • Measuring range 500 g
                        • Sensitivity 3.2 pC / g
                        • Upper limit frequency 4,000 Hz
                        • Three 10-32 connector sockets
                        • With ATEX / CSA / IECEx approval
