List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 961-972 of 1981 item(s)
Showing 961-972 of 1981 item(s)

PCB-637A06

  • Industrial ICP® vibration sensor,
  • Quartz sensor element,
  • Temperature range -196 ... +121 ° C,
  • Measuring range 200 g,
  • Sensitivity 25 mV / g,
  • Frequency range 0.2 ... 1500 Hz,
  • 2-pin connector at the top

    PCB-638A06

    • Industrial ICP® vibration sensor,
    • Quartz sensor element,
    • Mounting via through-hole,
    • Temperature range -196 ... +121 ° C,
    • Measuring range 200 g,
    • Sensitivity 25 mV / g,
    • Frequency range 0.4 ... 1500 Hz,
    • 2-pin connection socket on the side

      PCB-(M)639A91

      • Triaxial industrial ICP® vibration sensor,
      • With drill through,
      • Measurement range 50 g,
      • Sensitivity 100 mV/g,
      • Frequency range 0.5... 10,000 Hz,
      • Frequency response calibration,
      • M12 connector on the side

        PCB-604B11

        • Triaxial industrial ICP® vibration sensor,
        • With through hole,
        • Measuring range 50 g,
        • Sensitivity 100 mV / g,
        • Frequency range 0.5 ... 5,000 Hz,
        • One-point calibration at 100 Hz,
        • 4-pin bayonet connector on the side,
        • Integrated, waterproof connection cable, 3 m

          PCB-EX(M)639A91

          • Triaxial industrial ICP® vibration sensor,
          • With through hole,
          • Measuring range 50 g,
          • Sensitivity 100 mV / g,
          • Frequency range 0.5 ... 10.000 Hz,
          • Frequency calibration,
          • M12 connection socket on the side

            ICP® Beschleunigungssensor-Kit: PCB-(M)601A92 & 507QSXXXBZ

            • IP69K compliant ICP® acceleration sensor Kit, low-noise,
            • Aligned on high hygienic requirements in food production.
            • Consisting of sensor PCB-(M)601A92 & cable 507QSXXXBZ,.
            • Industrial ICP® vibration sensor,
            • Measuring range 10 g,
            • Sensitivity 500 mV / g,.
            • Frequency range 0.17... 10,000 Hz,
            • One-point calibration at 100 Hz,
            • M12 socket top

              ICP® Beschleunigungssensor-Kit: PCB-(M)603C91 & 507QSXXXBZ

              • IP69K compliant ICP® acceleration sensor Kit, compact design,
              • Aligned on high hygienic requirements in food production.
              • Consisting of sensor PCB-(M)603C91 & cable 507QSXXXBZ,.
              • Industrial ICP® vibration sensor,
              • Measurement range 50 g,
              • Sensitivity 100 mV/g,
              • Frequency range 0.5... 10,000 Hz,
              • One-point calibration at 100 Hz,
              • M12 socket top

                ICP® Beschleunigungssensor-Kit: PCB-(M)602D91 & 507QSXXXBZ

                • IP69K compliant ICP® acceleration sensor Kit, side mounted,
                • Aligned on the hygienic requirements in food production.
                • Sensor PCB-(M)602D91 & cable 507QSXXXBZ,
                • Industrial ICP® vibration sensor,
                • With drill through,.
                • Measurement range 50 g,
                • Sensitivity 100 mV/g,
                • Frequency range 0.5... 8,000 Hz,
                • One-point calibration at 100 Hz,
                • M12 connector

                  PCB-682A01

                  • Universal AC or DC power supply
                  • Three separate connection terminals for the output signal
                  • LED power indicator

                    PCB-682A14

                    • Transmitter for mounting on a top hat rail
                    • Connection of an industrial ICP® vibration sensor
                    • Integrated sensor supply

                      PCB-682A15

                      • Transmitter for mounting on a top hat rail
                      • Connection of an industrial ICP® vibration sensor
                      • Integrated sensor supply

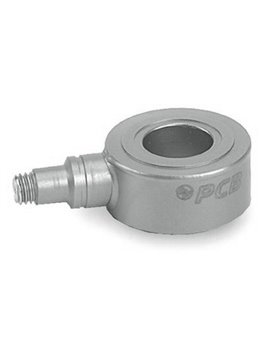

                        PCB-(M)202B

                        • ICP® force-load washer,
                        • Measuring range 1 kN,
                        • Sensitivity 4991 mV / kN,
                        • Frequency range 0.005 ... 65.000 Hz,
                        • 10-32 connector on the side
