      ICP® Beschleunigungssensor-Kit: PCB-(M)601A92 & 507QSXXXBZ

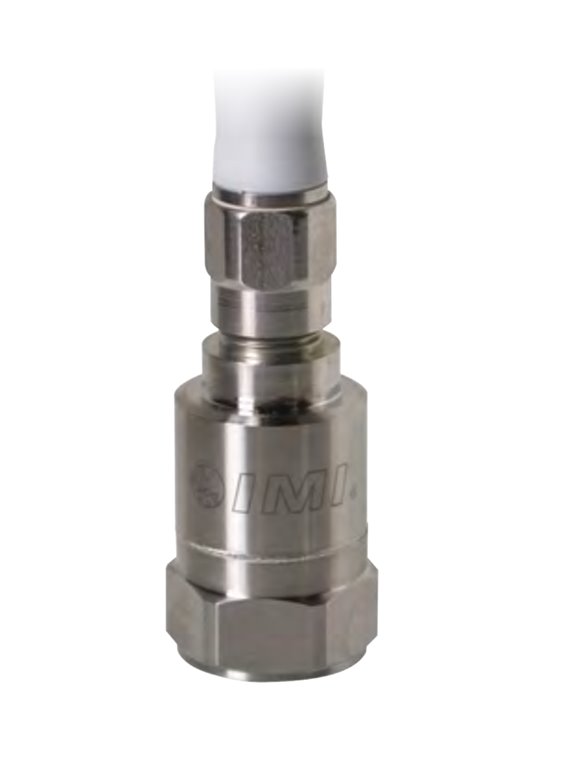

      • IP69K compliant ICP® acceleration sensor Kit, low-noise,
      • Aligned on high hygienic requirements in food production.
      • Consisting of sensor PCB-(M)601A92 & cable 507QSXXXBZ,.
      • Industrial ICP® vibration sensor,
      • Measuring range 10 g,
      • Sensitivity 500 mV / g,.
      • Frequency range 0.17... 10,000 Hz,
      • One-point calibration at 100 Hz,
      • M12 socket top



      Basic data
      Sensitivity (±20 %)500 mV / g51 mV/(m/s²)[1]

      Measuring range±10 g±98 m/s²

      Frequency range (≤5 %)28... 240,000 cpm0.47... 4,000 Hz[4]

      Frequency range (±10 %)20... 300,000 cpm0.33... 5,000 Hz

      Frequency range (± 3 dB)10... 600,000 cpm0.17... 10,000 Hz

      Resonance frequencykcpm 96016,000 Hz[2]

      Wide band resolution (1... 10,000 Hz)35 µg343 µm / s ²[2]

      Linearity error±1 % [3]

      Transverse acceleration sensitivity≤7 %
      Conditions of use
      Overload limit (shock)5,000 g pkpk 49,050 m/s²

      Temperature range-65... 250 ° F-54... 121 ° C

      Influence of temperature on Temperature coefficient of sensitivityViews curve below [2]

      protection classIP69K
      technical characteristics
      settling time (on area within ±1% of the bias voltage)≥10 s

      discharging charging time constant≥1,0 s

      power18... 28 V DC

      constant power supply2... 20 mA

      output impedance<150 Ω

      Bias voltage8... 12 V DC

      spectral noise (10 Hz)3 µg/√Hz29.4 (µm/s²)/√Hz[2]

      spectral noise (100 Hz )0,7 µg/√Hz6.9 (µm/s²)/√Hz[2]

      spectral noise (1,000 Hz)0.5 µg/√Hz4.9 (µm/s²)/√Hz[2]

      electrical insulation
      physical eggexcep
      Size - hex7/8 in22.2 mm

      Size - height1.82 in46.3 mm

      Mass2.8 oz80 grams

      Mounting thread1/4 "internal threadNo metric equivalent[5]

      Installation torque2... 5 ft-lb2.7... 6.8 Nm

      Sensor elementCeramic

      Geometry of the sensor elementShear principle

      Housing materialStainless steel (316L)

      SealingHermetically sealed welded

      ConnectionTop
      Notes
      [1]Conversion factor 1 g = 9.81 m/s²

      [2]Typically

      [3]Zero-balance just, determined using the method of least squares

      [4]Tolerance of the upper Grenzfrequenz: ±10 %

      [5]No equivalent in SI units

      [6]Details: see PCBs Declaration of conformance PS023
      Included accessories
      081A40Mounting bolts with 1/4 "-28 thread"-1

      ICS-2One-point calibration at 100 Hz (traceable to NIST)-1
      (M) metric mounting
      Included accessories

      M081A61Metric mounting bolts with M6 threads-1

      ≤7 %

      PCB-(M)601A92 & 507QSXXXBZ

      Specific References

      Download

      Product brochure IP69K sensors

      Product brochure IP69K sensors

      Download (1.3M)
