List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 949-960 of 1981 item(s)

Sort by:

Showing 949-960 of 1981 item(s)

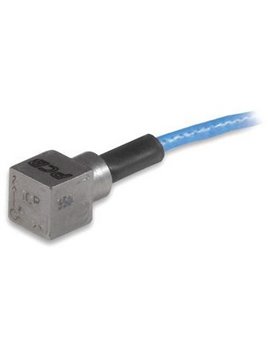

PCB-356M208

Triaxial ICP® miniature vibration sensor for vacuum applications,
Low outgassing

measuring range 1000 g,
sensitivity 5 mV / g,
frequency range 2 … 8,000 Hz,
mass 1 gram,
integrated cable, length 1.5 m, ending on 4 PIN Jack,
including extension cable, length 6 meter, ending to three BNC

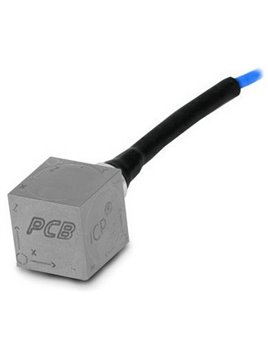

PCB-356M57

Triaxial ICP® miniature vibration sensor for vacuum applications,

Low outgassing

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 7,000 Hz,

Weight 4 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

including extension cable, length 1.5 m,
ending to three BNC

PCB-3713F1110G

Triaxial MEMS acceleration sensor
Suitable for measuring static accelerations
Measuring range ± 10 g pk (± 98.1m / s²)
Sensitivity (± 3%) 135 mV / g (13.8mV / (m / s²))
Typical frequency range (± 5%) 0 ... 1,000 Hz
Supply voltage 5… 32 V DC
9-pin female connector on the side

PCB-3713F112G

Triaxial MEMS acceleration sensor
Suitable for measuring static accelerations
Measuring range ± 2 g pk (± 19.6m / s²)
Sensitivity (± 3%) 675 mV / g (68.8mV / (m / s²))
Typical frequency range (± 5%) 0 ... 250 Hz
Supply voltage 5… 32 V DC
9-pin female connector on the side

PCB-3713F1210G

Triaxial MEMS accelerometer
Suitable for measuring static accelerations
Measuring range ± 10 g pk (± 98.1m / s²)
Sensitivity (± 3%) 135 mV / g (13.8mV / (m / s²))
Frequency range (± 5%) 0 ... 1,000 Hz
Supply voltage 5… 32 V DC
Integrated connection cable, length 3 meters,
ending on stripped and tinned ends

PCB-3713F122G

Triaxial MEMS accelerometer
Suitable for measuring static accelerations
Measuring range ± 2 g pk (± 19.6m / s²)
Sensitivity (± 3%) 675 mV / g (68.8mV / (m / s²))
Frequency range (± 5%) 0 ... 250 Hz
Supply voltage 5… 32 V DC
Integrated connection cable, length 3 meters,
ending on stripped and tinned ends

PCB-3713F1230G

Triaxial MEMS accelerometer
Suitable for measuring static accelerations
Measuring range ± 30 g pk (± 294.2m / s²)
Sensitivity (± 3%) 45 mV / g (4.59mV / (m / s²))
Frequency range (± 5%) 0… 1,500 Hz
Supply voltage 5… 32 V DC
Integrated connection cable, length 3 meters,
ending on stripped and tinned ends

PCB-EX611A20

Vibration sensor with charge output,
With ATEX approval,
Continuous use temperature up to 650 ° C,
With through-holes
Measuring range 200 g,
Sensitivity 10 pC/g,.
Upper frequency limit 3,700 Hz,
Integrated hardline cable, length 3 m,
ending on LEMO connectors

PCB-EX615A42

Vibration sensor with charge output,
With ATEX approval,
Continuous use temperature up to 260 ° C,
With through-holes
Measuring range 200 g,
Sensitivity 100 pC/g,
Upper frequency limit 6,000 Hz,
Integrated armored PTFE - cable, length 3 m,
ending on tinned ends

PCB-EX619A11

Vibration sensor with charge output,
With ATEX/CSA approval,
Continuous use temperature up to 482 ° C,
With through-holes
Measuring range 500 g,
Sensitivity 50 pC/g,
Upper cutoff frequency 5,000 Hz,
Integrated hardline cable, length 3 m,
ending on 2-pin connector

PCB-(M)603M113

Industrial piezoelectric vibration sensor
in 3-wire technology
No ICP® sensor power required
Measuring range 20 g
Sensitivity 100 mV / g
Frequency range 1.6 ... 10.000 Hz
Supply voltage 3 ... 12V
One-point calibration at 100 Hz
3-pin connector at the top

PCB-(M)607M83

Industrial ICP® vibration sensor
in 3- wire technology
No ICP® sensor power required
Measuring range 45 g
Sensitivity 100 mV / g
Frequency range 1.5 ... 10.000 Hz
One-point calibration at 100 Hz
Freely orientable integrated connection cable, length 3 meters,
ending on cut end
