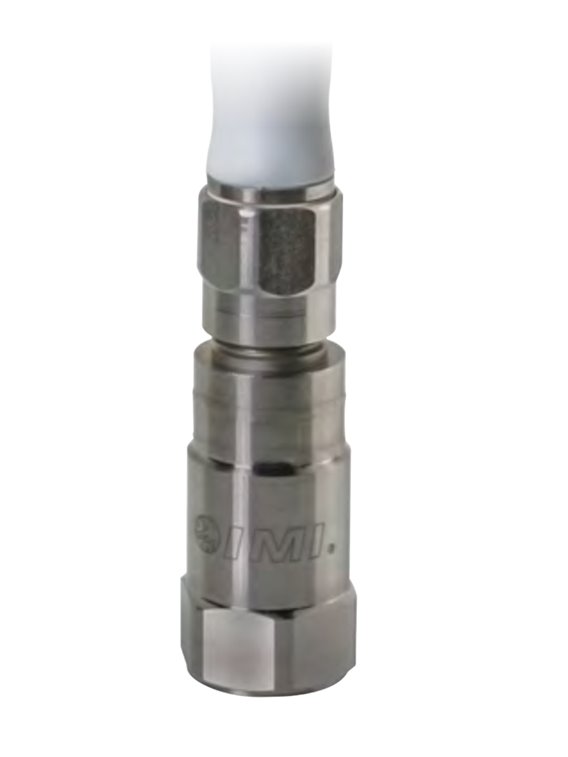

ICP® Beschleunigungssensor-Kit: PCB-(M)603C91 & 507QSXXXBZ
- IP69K compliant ICP® acceleration sensor Kit, compact design,
- Aligned on high hygienic requirements in food production.
- Consisting of sensor PCB-(M)603C91 & cable 507QSXXXBZ,.
- Industrial ICP® vibration sensor,
- Measurement range 50 g,
- Sensitivity 100 mV/g,
- Frequency range 0.5... 10,000 Hz,
- One-point calibration at 100 Hz,
- M12 socket top
| Basic data | |||
| Sensitivity (±10 %) | 10.2 mV/(m/s²) | [1] | |
| Measuring range | ±50 g | ±490 m/s² | |
| Frequency range (± 3 dB) | 30... 600,000 cpm | 0.5... 10,000 Hz | [4] |
| Resonance frequency | 1,500 kcpm | 25,000 Hz | [2] |
| Wide band resolution (1... 10,000 Hz) | 350 µg | 3.434 µm / s ² | [2] |
| Linearity error | ±1 % | [3] | |
| Transverse acceleration sensitivity | ≤7 % | ||
| Conditions of use | |||
| Overload limit (shock) | 5,000 g pk | pk 49,050 m/s² | |
| Temperature range | -65... 250 ° F | -54... 121 ° C | |
| Influence of temperature on Temperature coefficient of sensitivity | See curve below | [2] | |
| Type of protection | IP69K | ||
| Technical properties | |||
| Settling time (on area within ±1% d)He bias voltage) | ≤3,0 s | ||
| discharging charging time constant | ≥0,3 s | ||
| power | 18... 28 V DC | ||
| constant power supply | 2... 20 mA | ||
| output impedance | <150 Ω | ||
| Bias voltage | 8... 12 V DC | ||
| spectral noise (10 Hz) | 8 µg/√Hz | 78.5 (µm/s²)/√Hz | [2] |
| spectral noise (100 Hz ) | 5 µg/√Hz | 49.1 (µm/s²)/√Hz | [2] |
| spectral noise (1,000 Hz) | 4 µg/√Hz | 39.2 (µm/s²)/√Hz | [2] |
| electrical insulation | >100 MΩ | ||
| physical properties | |||
| size - Allen | 11/16 in | 18 mm | |
| size - height | 1.73 in | 44 mm | |
| 1.95 oz | 55 grams | ||
| Mounting thread | 1/4 "-28-female-thread" | No metric equivalent | [5] |
| Installation torque | 2... 5 ft-lb | 2.7... 6.8 Nm | |
| Sensor element | Ceramic | ||
| Geometry of the sensor element | Shear principle | ||
| Housing material | Stainless steel (316L) | ||
| Sealing | Hermetically sealed welded | ||
| Connection | Top | ||
| Notes | |||
| [1] | Conversion factor 1 g = 9.81 m/s² | ||
| [2] | Typically | ||
| [3] | Zero-balance just, determined using the method of least squares | ||
| [4] | The upper cut-off frequency tolerance: ± 10 % | ||
| [5] | No equivalent in SI units | ||
| [6] | Details: see PCBs Declaration of conformance PS023 | ||
| Included accessories | |||
| 081A40 | Mounting bolts with 1/4 "-28 thread" | -1 | |
| ICS-2 | One-point calibration at 100 Hz (traceable to NIST) | -1 | |
| (M) metric mounting | |||
| Included accessories | |||
| M081A61 | Metric mounting bolts with M6 threads | -1 |
PCB-(M)603C91 & 507QSXXXBZ
