PCB-356M57
zoom_out_map

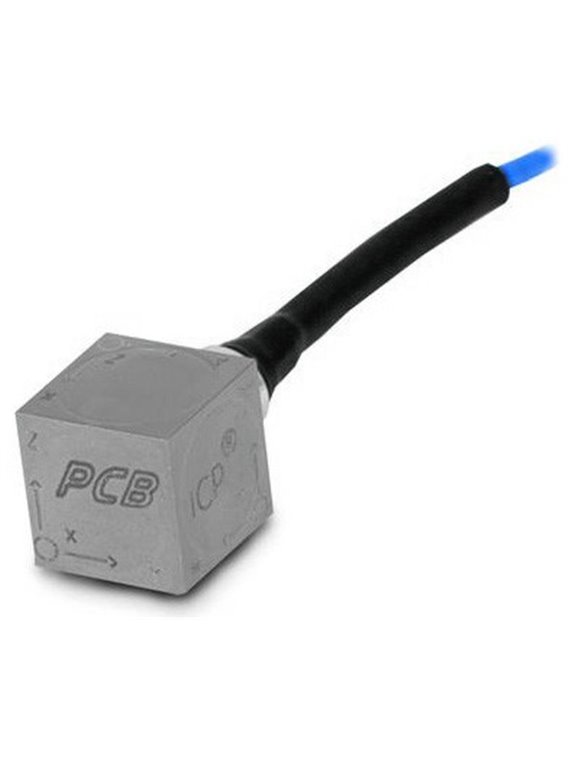

PCB-356M57

  • Triaxial ICP® miniature vibration sensor for vacuum applications,
  • Low outgassing
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • Integrated connection cable, length 1.5 m,
    ending on 4-pin female connector,
  • including extension cable, length 1.5 m,
    ending to three BNC
  • basic data
    sensitivity (±10%) 10 mV / g 1.02 mV/(m/s²)
    range ±500 g pk ±4. 905 m/s 2 pk
    frequency (Y - and Z-axis) < br(≤5 %) 2 … 10,000 Hz
    Frequency range (X-axis) (±5%) 2 … 7,000 Hz
    resonance frequency ≥ 55,000 Hz
    Wide band resolution 0.003 g RMS 0.03 m/s² RMS [1]
    linearity error ≤ 1% [4]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±10. 000 g pk ±98.100 m/s² pk
    temperature range (operation) -65 … 250 ° F -54 … 121 ° C
    specifications
    power supply 18 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 11 V DC
    Discharging charging time constant 0.3 … 1,0 s
    settlingbr(auf Bias-Spannung ±10 %) < 3 s
    Spectral noise (1 Hz) 1,000 µg / √ Hz 9.810 (µm / s ²) / √ Hz [1]
    spectral noise (10 Hz) 300 µg / √ Hz 2.943 ( µm / s ²) / √ Hz [1]
    spectral noise (100 Hz) 80 µg / √ Hz 785 (µm / s ²) / √ Hz [1]
    spectral noise ( 1,000 Hz) 25 µg / √ Hz 308 (µm / s ²) / √ Hz [1]
    physical properties
    sensor element ceramic
    Geometry of the sensor element shear principle
    housing material titanium
    sealing hermetically sealed welded
    Size - height 0.4 in 10.2 mm
    size - length 0.4 in 10.2 mm
    Size - width 0.4 in 10.2 mm
    dimensions (without cable) 0.14 oz 4 grams [1]
    wiring Integrated cable [3]
    cable exit side
    cable termination 1/4 "-28 4-pin socket
    "
    Cable length 5 ft 1.5 m
    cord type type 034, 4-wire shielded cable [2]
    mounting thread 5-40 female
    Assembly torque 4 … 5 in-lb 45 … 56 NCM
    notes
    [1] typically
    [2]The only outgasing material is the Teflon is used for the cable sheath.
    [3] TML: ≤ 1% CVCM: ≤ 0.1%
    [4] zero-based balancing line, determined using the method of least squares
    [5] details: see PCBs Declaration of conformance PS023
    Accessories
    034 G 05 4-wire shielded cables, 1.5 meter, 4-pin connector to three BNC -1
    080A adhesive mounting -1
    080A109 mounting wax -1
    081A27 mounting bolts, 5-40 on 5-40 -1
    081A90 mounting bolts, 10-32 on 5-40 -1
    ACS-1T Frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    M081A27 metric mounting bolts, 5-40 M3 x 0.50 -1
