PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1933-1944 of 1981 item(s)
Showing 1933-1944 of 1981 item(s)

PCB-352A72

  • ICP®-miniature vibration sensor,
  • Mass 0.64 grams,
  • With built-in low-pass filter,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 0.5 … 4,500 Hz,
  • Integrated cable, length 3 m,
    ending on 10-32 plug
    • PCB-352A73

    • ICP®-miniature vibration sensor,
    • Mass 0.2 grams,
    • Measuring range 1000 g,
    • Sensitivity 5 mV / g,
    • Frequency range 2 … 10,000 Hz,
    • Integrated cable, length 3 m,
      ending on 10-32 plug

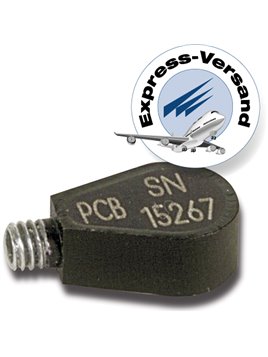

      • PCB-352C22/NC

        • ICP®-miniature vibration sensor,
        • Mass 0.5 grams.
        • Mass-insulated,.
        • Measuring range 500 g
        • Sensitivity 10 mV / g,.
        • Frequency range 1... 10,000 Hz,
        • 3-56 female connector on the side.
        • Without cable

          PCB-(M)352C65

          • ICP®-miniature vibration sensor,
          • Measurement range 50 g,
          • Sensitivity 100 mV/g,
          • Frequency range 0.5... 10,000 Hz,
          • Dimensions 2 grams.
          • 5-44 connector on the side

            PCB-(M)352C66

          • ICP®-miniature vibration sensor,
          • Measurement range 50 g,
          • Sensitivity 100 mV/g,
          • Frequency range 0.5 … 10,000 Hz,
          • Mass 2 grams,
          • 5-44 female connector above
            • PCB-(M)352C68

              • ICP®-miniature vibration sensor,
              • Measurement range 50 g,
              • Sensitivity 100 mV/g,
              • Frequency range 0.5... 10,000 Hz,
              • Dimensions 2 grams.
              • 10-32 female connector above

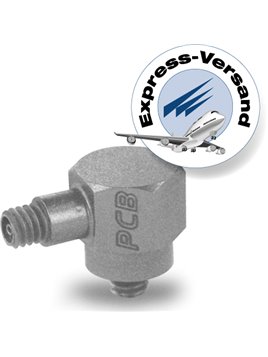

                PCB-(M)353B15

                • ICP®-miniature vibration sensor,
                • Measuring range 500 g
                • Sensitivity 10 mV / g,.
                • Frequency range 1... 10,000 Hz,
                • Dimensions 2 grams.
                • 5-44 connector on the side

                  PCB-(M)353B16

                • ICP®-miniature vibration sensor,
                • Measuring range 500 g
                • Sensitivity 10 mV / g,
                • Frequency range 1 … 10,000 Hz,
                • Mass 1.5 grams,
                • 5-44 female connector above

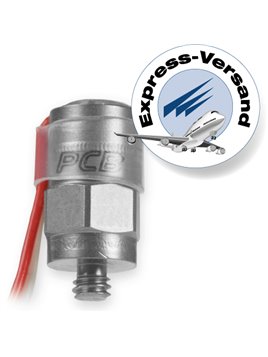

                  • PCB-(M)353B17

                    • ICP®-miniature vibration sensor,
                    • Measuring range 500 g
                    • Sensitivity 10 mV / g,.
                    • Frequency range 1... 10,000 Hz,
                    • Mass 1.7 grams.
                    • Integrated cable, length 3 m,
                      ending on 10-32 plug

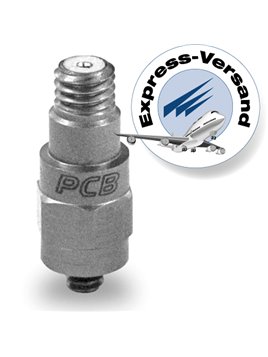

                      PCB-(M)353B18

                      • ICP®-miniature vibration sensor,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,.
                      • Frequency range 1... 10,000 Hz,
                      • Mass 1.8 grams.
                      • 10-32 female connector above

                        PCB-003A01

                      • Low-Noise-Teflon coaxial cable
                      • Length 30 cm,
                      • 10-32 plug to 10-32 plug
                        • PCB-003A03

                        • Low-Noise-Teflon coaxial cable
                        • Length 90 cm,
                        • 10-32 plug to 10-32 plug
