List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1921-1932 of 1981 item(s)
Showing 1921-1932 of 1981 item(s)

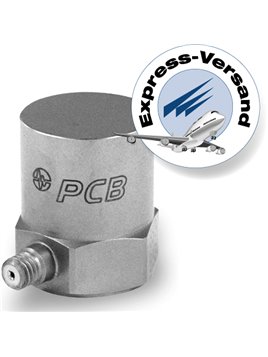

PCB-353B33

  • ICP® vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 1... 4,000 Hz,
  • 10-32 socket side

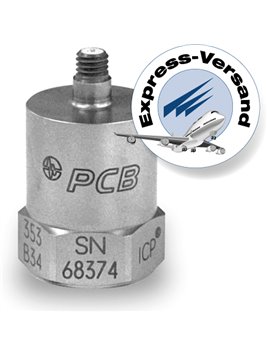

    PCB-353B34

    • ICP® vibration sensor,
    • Measurement range 50 g,
    • Sensitivity 100 mV/g,
    • Frequency range 1... 4,000 Hz,
    • 10-32 female connector above

      PCB-353B51

    • ICP® vibration sensor,
    • Measuring range 10 g,
    • Sensitivity500 mV / g,
    • Frequency range 1 … 2,000 Hz,
    • 10-32 female connector on the side
      • PCB-(M)355B02

      • ICP® vibration sensor,
      • With through hole,
      • Masseisoliert,
      • Measuring range 500 g
      • Sensitivity 10 mV / g,
      • Frequency range 1 … 10,000 Hz,
      • 10-32 female connector on the side
        • PCB-(M)355B03

        • ICP® vibration sensor,
        • With through hole,
        • Masseisoliert,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • Frequency range 1 … 10,000 Hz,
        • 10-32 female connector on the side
          • PCB-(M)355B04

          • ICP® vibration sensor,
          • With through hole,
          • Masseisoliert,
          • Measuring range 5 g,
          • Sensitivity 1,000 mV / g,
          • Frequency range 1 … 8,000 Hz,
          • 10-32 female connector on the side
            • PCB-352A21/NC

              • ICP®-miniature vibration sensor,
              • Mass 0.6 grams.
              • Measuring range 500 g
              • Sensitivity 10 mV / g,.
              • Frequency range 1... 10,000 Hz,
              • 3-56 female connector on the side.
              • Without cable

                PCB-352A24/NC

                • ICP®-miniature vibration sensor,
                • Mass 0.8 grams.
                • Mass-insulated,.
                • Measurement range 50 g,
                • Sensitivity 100 mV/g,
                • Frequency range 1... 8,000 Hz,
                • 3-56 female connector on the side.
                • Without cable

                  PCB-352A25/NC

                • ICP®-miniature vibration sensor,
                • Mass 0.6 grams,
                • Measuring range 2,000 g
                • Sensitivity 2.5 mV / g,
                • Frequency range 1 … 10,000 Hz,
                • 3 56-connector side,
                • Without connection cable
                  • PCB-352A56

                  • ICP®-miniature vibration sensor,
                  • Mass 1.8 grams,
                  • With TEDS memory chip,
                  • Measurement range 50 g,
                  • Sensitivity 100 mV/g,
                  • Frequency range 0.5 … 10,000 Hz,
                  • 5-44 female connector on the side
                    • PCB-352A57

                      • ICP®-miniature vibration sensor,
                      • Mass 1.3 grams.
                      • With TEDS memory chip,.
                      • Measuring range 2,000 g
                      • Sensitivity 2.5 mV / g,.
                      • Frequency range 0.5... 10,000 Hz,
                      • 5-44 connector side,.
                      • Suitable for vacuum applications
                        (Special cables required, details on request)

                        PCB-352A71

                      • ICP®-miniature vibration sensor,
                      • Mass 0.64 grams,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,
                      • ,
                      • frequency range 0.5 … 10,000 Hz,
                      • integrated cable, length 3 m,
                        ending on 10-32 plug
