List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1405-1416 of 1981 item(s)
Showing 1405-1416 of 1981 item(s)

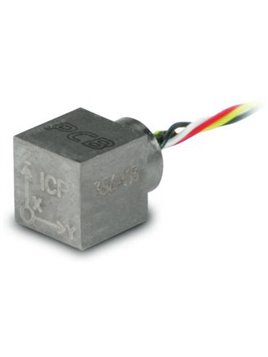

PCB-356A13/NC

  • Triaxial ICP® miniature vibration sensor,
  • Mass 1 gram,
  • Measuring range 1000 g,
  • Sensitivity 5 mV / g,
  • Frequency range 2 … 8,000 Hz,
  • Integrated light connection cable, length 1.5 m, ending on 4-pin female connector,
  • without extension cable

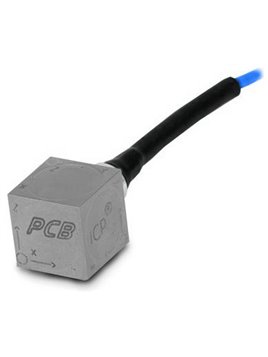

    PCB-356B11

  • Triaxial ICP® miniature vibration sensor,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • Integrated connection cable, length 1.5 m,
    ending on 4-pin female connector,
  • including extension cable, length 1.5 m,
    ending to three BNC
    • PCB-356A12/NC

      • Triaxial ICP® miniature vibration sensor,
      • Measurement range 50 g,
      • Sensitivity 100 mV/g,
      • Frequency range 0.5... 5,000 Hz,
      • Weight 4 grams.
      • Integrated cable, length 1.5 m,
        ending on 4-pin female connector.
      • Without extension cable

        PCB-356A13

        • Triaxial ICP® miniature vibration sensor,
        • Mass 1 gram,.
        • Measuring range 1000 g,
        • Sensitivity 5 mV / g,.
        • Frequency range 2... 8,000 Hz,
        • Integrated light connection cable, length 1.5 m,
          ending on 4-pin female connector.
        • Including extension cable, length 1.5 m,
          ending on three BNC plugs

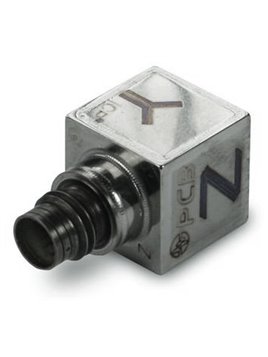

          PCB-356A34

          • Triaxial ICP® miniature vibration sensor,
          • Measuring range 100 g,
          • Sensitivity 50 mV / g,.
          • Frequency range 1... 4,000 Hz,
          • 4-pin female connector on the side

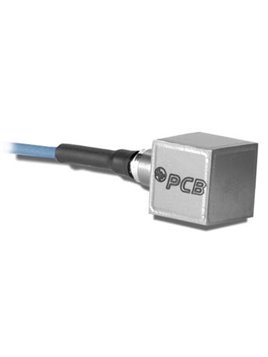

            PCB-356A12

            • Triaxial ICP® miniature vibration sensor,
            • Measurement range 50 g,
            • Sensitivity 100 mV/g,
            • Frequency range 0.5... 5,000 Hz,
            • Weight 4 grams.
            • Integrated cable, length 1.5 m,
              ending on 4-pin female connector.
            • Including extension cable, length 1.5 m,
              ending on three BNC plugs

              PCB-356A36

              • Triaxial ICP® miniature vibration sensor,
              • Measuring range 500 g
              • Sensitivity 10 mV / g,.
              • Frequency range 1... 4,000 Hz,
              • Dimensions 4.3 grams.
              • 4-pin female connector on the side

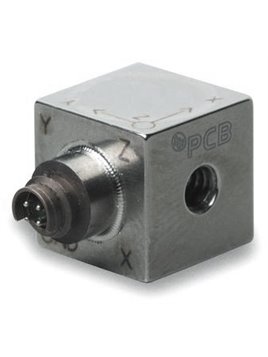

                PCB-356B20

                • Triaxial ICP® miniature vibration sensor,
                • Measuring range 5,000 g,
                • Sensitivity 1 mV / g,.
                • Frequency range 2... 7,000 Hz,
                • Weight 4 grams.
                • 4-pin mini connector on the side.
                • Including connection cable, length 3 m,
                  ending on three BNC plugs

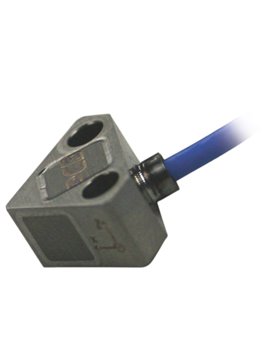

                  PCB-3503A1020KG

                • Triaxial MEMS high-shock sensor,
                • Measuring range 20,000 g
                • Sensitivity 0.001 mV / V / g,
                • Frequency range 0 … 10,000 Hz,
                • Integrated cable, length 3 m,
                  ending on stripped and tinned ends
                  • PCB-3503A1060KG

                  • Triaxial MEMS high-shock sensor,
                  • Measuring range 60,000 g,
                  • Sensitivity 0.0003 mV / V / g,
                  • Frequency range 0 … 10,000 Hz,
                  • Integrated cable, length 3 m,
                    ending on stripped and tinned ends

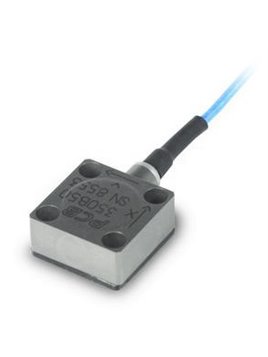

                    • PCB-350B50/NC

                    • Triaxial ICP® shock acceleration sensor,
                    • Masseisoliert,
                    • With electric filters < br(-3 dB bei?20.000 Hz),
                    • range 10,000 g,
                    • sensitivity 0.5 mV / g,
                    • frequency range 3 … 10,000 Hz,
                    • integrated cable, length 1.5 m,
                      ending on 4-pin female connector,
                    • Without extension cable
                      • PCB-(M)354C02

                      • Triaxial ICP® vibration sensor,
                      • With through hole,
                      • Masseisoliert,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,
                      • Frequency range 0.5 … 2,000 Hz,
                      • 4-pin female connector on the side
