List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1417-1428 of 1981 item(s)
Showing 1417-1428 of 1981 item(s)

PCB-(M)354C03

  • Triaxial ICP® vibration sensor,
  • With through hole,
  • Masseisoliert,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.5 … 2,000 Hz,
  • 4-pin female connector on the side

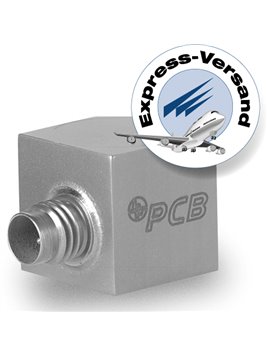

    • PCB-356A02

      • Triaxial ICP® vibration sensor,
      • Measuring range 500 g
      • Sensitivity 10 mV / g,.
      • Frequency range 1... 5,000 Hz,
      • 4-pin female connector on the side

        PCB-356A15

        • Triaxial ICP® vibration sensor,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • Frequency range 2... 5,000 Hz,
        • 4-pin female connector on the side

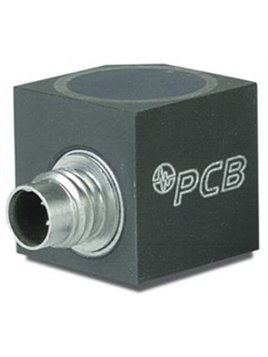

          PCB-356A17

        • Triaxial ICP®-modal vibration sensor,
        • Measuring range 10 g,
        • Sensitivity500 mV / g,
        • Frequency range 0.5 … 3,000 Hz,
        • 4-pin female connector on the side

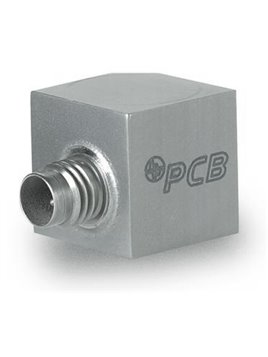

          • PCB-356A25

          • Triaxial ICP® vibration sensor,
          • Measuring range 200 g
          • Sensitivity 25 mV / g,
          • Frequency range 1 … 5,000 Hz,
          • 4-pin female connector on the side
            • PCB-356A26

            • Triaxial ICP® vibration sensor,
            • Measuring range 100 g,
            • Sensitivity 50 mV / g,
            • Frequency range 1 … 5,000 Hz,
            • 4-pin female connector on the side

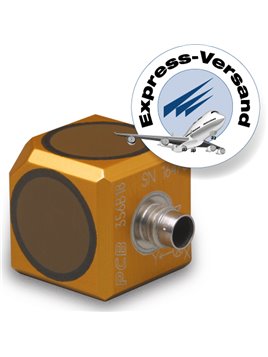

              • PCB-356B18

                • Triaxial ICP®-modal vibration sensor,
                • Measuring range 5 g,
                • Sensitivity 1,000 mV / g,.
                • Frequency range 0.5... 3,000 Hz,
                • 4-pin female connector on the side

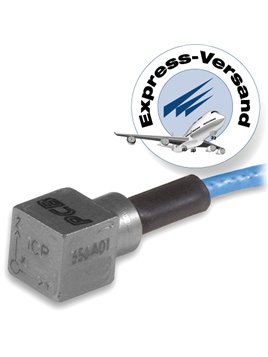

                  PCB-356A01

                  • Triaxial ICP® miniature vibration sensor,
                  • Mass 1 gram,
                  • Measuring range 1000 g,
                  • Sensitivity 5 mV / g,
                  • Frequency range 2 … 8,000 Hz,
                  • Integrated connection cable, length 1.5 m, ending on 4-pin female connector,
                  • including extension cable, length 1.5 m, ending to three BNC

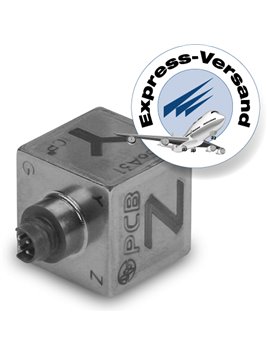

                    PCB-356A32

                  • Triaxial ICP® miniature vibration sensor,
                  • Measurement range 50 g,
                  • Sensitivity 100 mV/g,
                  • Frequency range 1 … 4.000 Hz,
                  • Mass 5 grams,
                  • 4-pin mini connector side,
                  • Including connection cable, length 3 m,
                    ending to three BNC

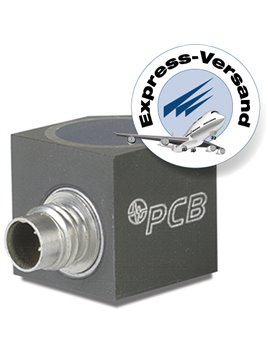

                    • PCB-356A16

                      • Triaxial ICP®-modal vibration sensor,
                      • Measurement range 50 g,
                      • Sensitivity 100 mV/g,
                      • Frequency range 0.5... 5,000 Hz,
                      • 4-pin female connector on the side

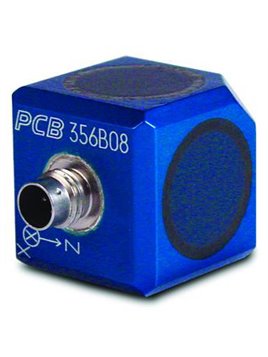

                        PCB-356B08

                      • Triaxial ICP®-modal vibration sensor,
                      • Measurement range 50 g,
                      • Sensitivity 100 mV/g,
                      • Frequency range 2 … 7,000 Hz,
                      • 4-pin female connector on the side
                        • PCB-HT(M)354C02

                        • Triaxial ICP® high-temperature vibration sensor,
                        • Continuous use temperature up to 163 ° C,
                        • With through hole,
                        • Masseisoliert,
                        • Measuring range 500 g
                        • Sensitivity 10 mV / g,
                        • Frequency range 0.5 … 6,000 Hz,
                        • 4-pin female connector on the side
