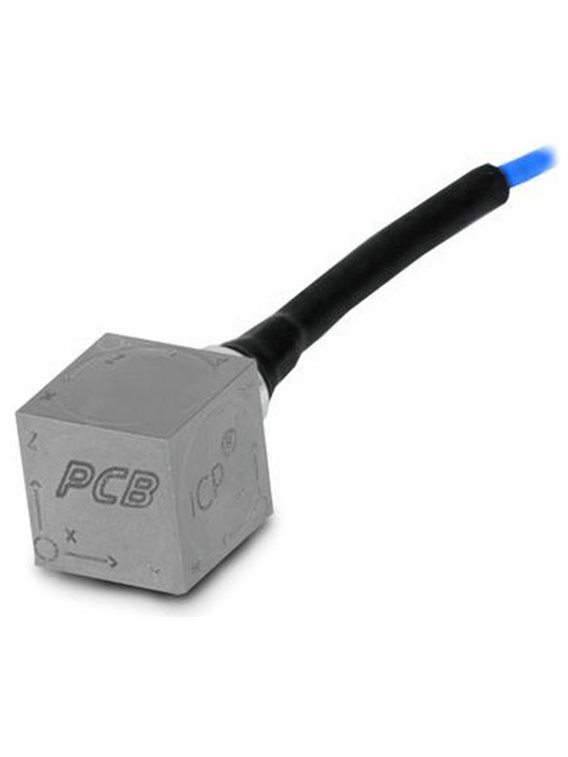

PCB-356B11
    zoom_out_map

      PCB-356B11

    • Triaxial ICP® miniature vibration sensor,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 2 … 7,000 Hz,
    • Weight 4 grams,
    • Integrated connection cable, length 1.5 m,
      ending on 4-pin female connector,
    • including extension cable, length 1.5 m,
      ending to three BNC
    • "
      basic data
      sensitivity (±10%)10 mV / g1.02 mV/(m/s²)
      range±500 g pk ±4. 905 m/s 2 pk
      frequency (Y - and Z-axis) < br(≤5 %)2 … 10,000 Hz
      Frequency range (X-axis) (±5%)2 … 7,000 Hz
      resonance frequency≥ 55,000 Hz
      Wide band resolution0,004 g RMS0.04 m/s² RMS[2]
      linearity error≤ 1%[1]
      transverse acceleration sensitivity≤ 5%
      conditions of use
      Overload limit (shock) ±10. 000 g pk ±98.100 m/s² pk
      temperature range (operation)-65 … 250 ° F-54 … 121 ° C[3]
      specifications
      power supply18 … 30 V DC
      Constant power supply2 … 20 mA
      output impedance≤200Ω
      Bias voltage7 … 11 V DC
      Discharging charging time constant0.3 … 1,0 s
      settlingbr(auf Bias-Spannung ±10 %)< 3 s
      Spectral noise (1 Hz)1,000 µg / √ Hz9.810 (µm / s ²) / √ Hz[2]
      spectral noise (10 Hz)300 µg / √ Hz2.943 ( µm / s ²) / √ Hz[2]
      spectral noise (100 Hz)100 µg / √ Hz981 (µm / s ²) / √ Hz[2]
      spectral noise ( 1,000 Hz)50 µg / √ Hz490 (µm / s ²) / √ Hz[2]
      physical properties
      sensor elementceramic
      Geometry of the sensor elementShear principle
      Housing materialtitanium
      sealinghermetically sealed
      size e height0.4 in10.2 mm
      size - length0.4 in10.2 mm
      size - width0.4 in10.2 mm
      Dimensions (without cable)0.14 oz4 grams[2]
      electrical connectionintegrated cable
      Cable outletside
      cable termination1/4 "-28 4-pin socket
      cable length5 ft1.5 m
      Cord typetype 034, 4-wire shielded cable
      mounting screw5-40 female
      Assembly torque4 … 5 in-lb45 … 56 NCM
      notes
      [1]zero-based balancing line, determined using the method of least squares
      [2]typically
      [3]the data for temperatures above 121 ° C applies only for transducers with HT option.
      [4]details: see PCBs Declaration of conformance PS023
      equipment
      034 G 05 4-wire shielded cable, 1,5Meter, 4-pin connector to three BNC-1
      080Aadhesive mounting-1
      080A109mounting wax-1
      081A27mounting bolts, 5-40 on 5-40-1
      081A90Mounting bolts, 10-32 on 5-40-1
      ACS-1Tfrequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency-1
      M081A27metric mounting bolts, 5-40 M3 x 0.50-1
      (A) glue Assembly
      Accessories
      080A109mounting wax-1
      034 G 05cable-1
      080A90cyano-1
      (HT) high temperature electronics
      Temperature range-65 … 325 ° F-54 … 163 ° C
      (J) mass insulation of
      frequency range (+ 5%)7,000 Hz
      electrical insulation≥ 100 MΩ
      Size - height0.44 in11.2 mm
      size - length0.40 in10.2 mm
      size - width0,44 in11.2 mm
      mass0.16 oz4.5 grams
      attachmentbonding
      Accessories
      080A90cyano-1
      080A109mounting wax-1
      034 G 05cable-1
      (W) waterproof cable connection
