List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1393-1404 of 1981 item(s)
Showing 1393-1404 of 1981 item(s)

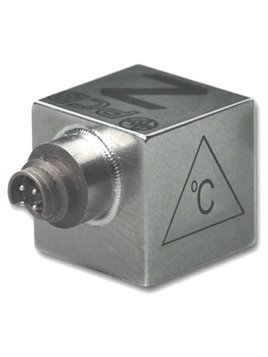

PCB-339A30

  • Triaxial ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Very low temperature coefficient,
  • With built-in low-pass filter,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 8,000 Hz,
  • Weight 4 grams,
  • 4-pin mini connector side,
  • Including connection cable, length 3 m,
    ending to three BNC
    • PCB-339A30/NC

    • Triaxial ICP® high-temperature vibration sensor,
    • Continuous use temperature up to 163 ° C,
    • Very low temperature coefficient,
    • With built-in low-pass filter,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 2 … 8,000 Hz,
    • Weight 4 grams,
    • 4-pin mini connector side,
    • Without connection cable

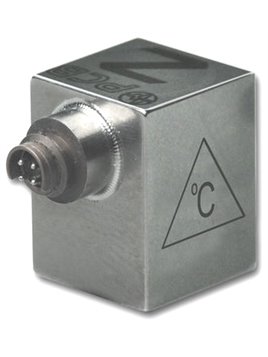

      • PCB-339A31/NC

      • Triaxial ICP® high-temperature vibration sensor,
      • Continuous use temperature up to 163 ° C,
      • Very low temperature coefficient,
      • With built-in low-pass filter,
      • Measuring range 500 g
      • Sensitivity 10 mV / g,
      • Frequency range 2 … 6,000 Hz,
      • Weight 5.5 grams,
      • 4-pin mini connector side,
      • Without connection cable

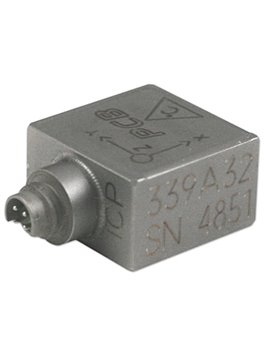

        • PCB-339A32/NC

        • Triaxial ICP® high-temperature vibration sensor,
        • Continuous use temperature up to 163 ° C,
        • Very low temperature coefficient,
        • Measuring range 500 g
        • Sensitivity 10 mV / g,
        • Frequency range 2 … 8,000 Hz,
        • Mass 3.6 grams,
        • 4-pin mini connector side,
        • Without connection cable

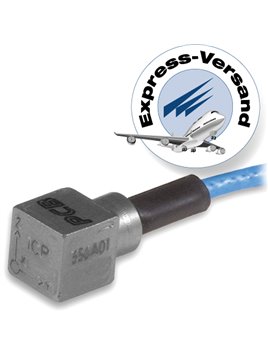

          • PCB-356A03/NC

            • Triaxial ICP® miniature vibration sensor,
            • Mass 1 gram,.
            • Measuring range 500 g
            • Sensitivity 10 mV / g,.
            • Frequency range 2... 8,000 Hz,
            • Integrated cable, length 1.5 m,
              ending on 4-pin female connector.
            • Without extension cable

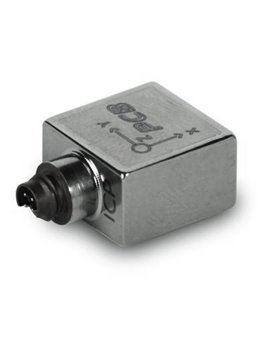

              PCB-356A24/NC

            • Triaxial ICP® miniature vibration sensor,
            • Measuring range 500 g
            • Sensitivity 10 mV / g,
            • Frequency range 1 … 9,000 Hz (up to 12,000 Hz ±10%),
            • mass 3.1 grams,
            • 4-pin mini connector side,
            • without connection cable

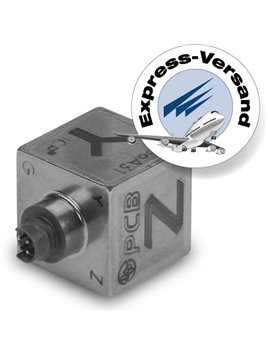

              • PCB-356A32/NC

                • Triaxial ICP® miniature vibration sensor,
                • Measurement range 50 g,
                • Sensitivity 100 mV/g,
                • Frequency range 1... 4,000 Hz,
                • Dimensions 5 grams.
                • 4-pin mini connector on the side.
                • Without cable

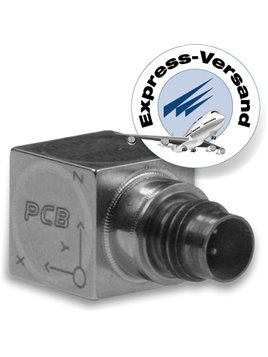

                  PCB-356A33

                  • Triaxial ICP® miniature vibration sensor,
                  • Measuring range 500 g
                  • Sensitivity 10 mV / g,.
                  • Frequency range 2... 7,000 Hz,
                  • 4-pin female connector on the side

                    PCB-356B10/NC

                  • Triaxial ICP® miniature vibration sensor,
                  • Measuring range 5,000 g,
                  • Sensitivity 1 mV / g,
                  • Frequency range 2 … 7,000 Hz,
                  • Weight 4 grams,
                  • Integrated connection cable, length 1.5 m,
                    ending on 4-pin female connector,
                  • without extension cable
                    • PCB-(M)354C10/NC

                    • Triaxial ICP® miniature vibration sensor,
                    • With through hole,
                    • Masseisoliert,
                    • Measuring range 500 g
                    • Sensitivity 10 mV / g,
                    • Frequency range 2 … 8,000 Hz,
                    • Mass 5 grams,
                    • Integrated connection cable, length 1.5 m,
                      ending on 4-pin female connector,
                    • without extension cable

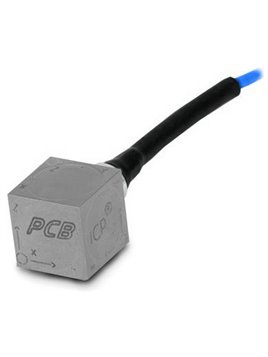

                      • PCB-356B11/NC

                      • Triaxial ICP® miniature vibration sensor,
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,
                      • Frequency range 2 … 7,000 Hz,
                      • Weight 4 grams,
                      • Integrated connection cable, length 1.5 m,
                        ending on 4-pin female connector,
                      • without extension cable

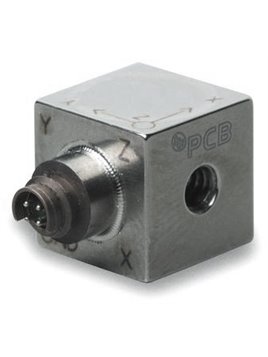

                        • PCB-356B20/NC

                        • Triaxial ICP® miniature vibration sensor,
                        • Measuring range 5,000 g,
                        • Sensitivity 1 mV / g,
                        • Frequency range 2 … 7,000 Hz,
                        • Weight 4 grams,
                        • 4-pin mini connector side,
                        • Without connection cable
