List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 1153-1164 of 1981 item(s)

Sort by:

Showing 1153-1164 of 1981 item(s)

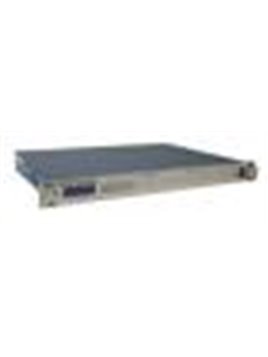

PCB-483C41

8-Kanal-Versorgungseinheit,

Eingänge: ICP®, Spannung und Ladung,

Kontinuierliche Verstärkung 0,1 … 200x,

BNC-Ein- und Ausgänge,

Ethernet-Schnittstelle,

TEDS-Support,

Einstellbare Tiefpassfilter,

Display und Bedienfeld

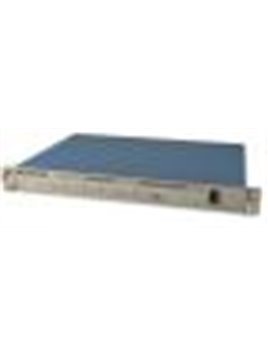

PCB-483C50

8-channel supply unit,

Inputs: ICP® and voltage,

Continuous gain of 0.1 …?200 ?,

BNC-inputs and outputs,

Ethernet interface,

TEDS support

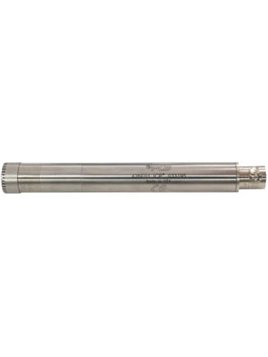

PCB-378A07

1/2 "-ICP® precision microphone for free-field applications,

Suitable for Infraschallmessungen,

Combination of microphone capsule PCB 377A07 and preamp PCB-426E01,

Sensitivity 5.8 mV / PA,

Dynamic range > 134 dB,

Frequency range 0.1 … 20,000 Hz,

BNC connector,

As system calibrated

PCB-378A13

1/2 "-ICP® precision microphone for pressure applications,

Combination of microphone capsule PCB 377A13 and preamp PCB-426E01,

Sensitivity 12.6 mV / PA,

Dynamic range > 147 dB,

Frequency range 4 … 20,000 Hz,

BNC connector,

As system calibrated

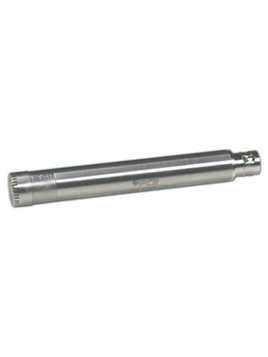

PCB-378B20

1/2 "-ICP® precision microphone for diffuse field applications,
Combination of microphone capsule PCB-377 B 20 and preamp PCB-426E01,
Sensitivity 50 mV / PA,
Dynamic range > 135 dB,
Frequency range 3.75 … 12,500 Hz,
BNC connector,
As system calibrated,
No longer available (replacement: PCB-378C20)

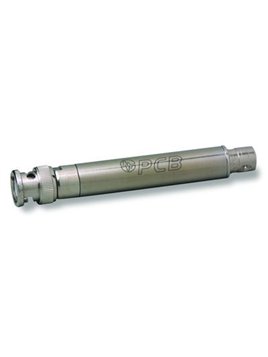

PCB-426B02

In-line-A rating filter for use with ICP® microphones,

Frequency range 20 … 20,000 Hz,

Input: BNC connector,

Output: BNC connector

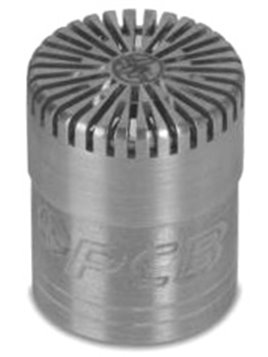

PCB-377A07

Prepolarized 1/2 "precision microphone for free-field applications,

Suitable for Infraschallmessungen,

Sensitivity 50 mV / PA,

Dynamic range > 145 dB,

Frequency range 0.07 … 20,000 Hz

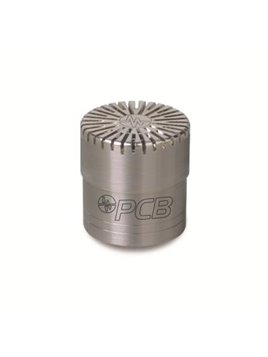

PCB-377A13

Prepolarized 1/2 "precision microphone capsule for pressure applications,

Sensitivity 12.6 mV / PA,

Dynamic range > 155 dB,

Frequency range 4 … 20,000 Hz

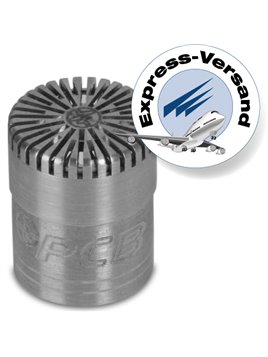

PCB-377B02

Prepolarized 1/2 "precision microphone for free-field applications,

Sensitivity 50 mV / PA,
Dynamic range > 146 dB,
Frequency range 3.15 … 20,000 Hz

PCB-377B11

Prepolarized 1/2 "precision microphone capsule for pressure applications,

Sensitivity 50 mV / PA,

Dynamic range > 143 dB,

Frequency range 3.15 … 10,000 Hz

PCB-377B20

Prepolarized 1/2 "precision microphone for diffuse field applications,
sensitivity 50 mV / PA,
dynamic range > 144 dB,
frequency range 3.15..." 12,500 Hz,
- no longer available (replacement: PCB-377 C 20)

PCB-377C20

Prepolarized 1/2"-Präzisionsmikrofonkapsel
für Diffusfeldanwendungen,
Empfindlichkeit 50 mV/Pa,
Dynamikbereich >144 dB,
Frequenzbereich 3,15 … 16.000 Hz
