PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1165-1176 of 1981 item(s)
Showing 1165-1176 of 1981 item(s)

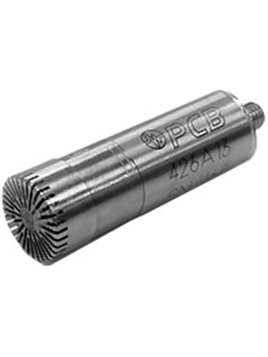

PCB-376B02

  • Short 1/2 "-ICP® precision microphone for free-field applications,
  • Combination of microphone capsule PCB-377 B 02 / preamp PCB-426A13,
  • Sensitivity 50 mV / PA,
  • Dynamic range > 135 dB,
  • Frequency range 3.75 … 20,000 Hz,
  • 10-32 socket
  • As system calibrated

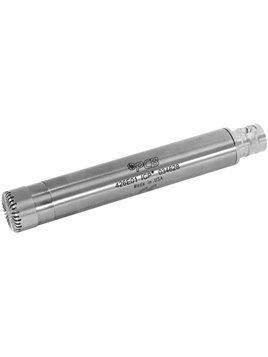

    • PCB-378A06

    • 1/2 "-ICP® precision microphone for free-field applications,
    • High dynamic and frequency range,
    • Combination of microphone capsule PCB 377A06 and preamp PCB-426E01,
    • Sensitivity 12.6 mV / PA,
    • Dynamic range > 146 dB,
    • Frequency range 3.15 … 40,000 Hz,
    • BNC connector,
    • As system calibrated

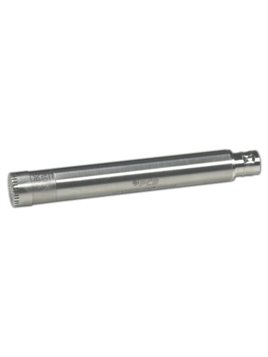

      • PCB-378A21

        • 1/2 "-ICP® precision microphone for diffuse field applications,
        • Combination of microphone capsule PCB 377A21 and preamp PCB-426E01,
        • Sensitivity 12.6 mV / PA,
        • Dynamic range > 147 dB,
        • Frequency range 4 … 25,000 Hz,
        • BNC connector,
        • As system calibrated

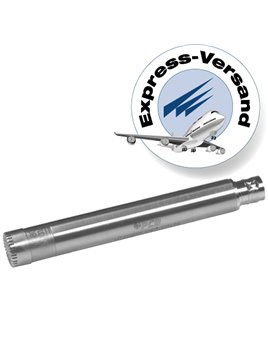

          PCB-378B02

          • 1/2 "-ICP® precision microphone for free-field applications,
          • Combination of microphone capsule PCB-377 B 02 / preamp PCB-426E01,
          • Sensitivity 50 mV / PA,
          • Dynamic range > 135 dB,
          • Frequency range 3.75 … 20,000 Hz,
          • BNC connector,
          • As system calibrated

            PCB-378B11

          • 1/2 "-ICP® precision microphone for pressure applications,
          • Combination of microphone capsule PCB-377 B 11 / preamp PCB-426E01,
          • Sensitivity 50 mV / PA,
          • Dynamic range > 135 dB,
          • Frequency range 3.75 … 10,000 Hz,
          • BNC connector,
          • As system calibrated
            • PCB-378C20

            • 1/2 "-ICP® precision microphone for diffuse field applications,
            • Combination of microphone capsule PCB-377 C 20 and preamp PCB-426E01,
            • Sensitivity 50 mV / PA,
            • Dynamic range > 135 dB,
            • Frequency range 3.75 … 16,000 Hz,
            • BNC connector,
            • As system calibrated

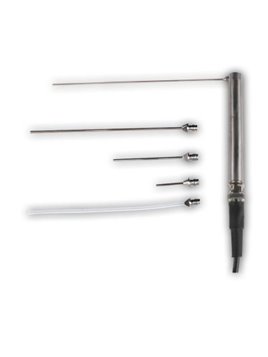

              • PCB-377B26

              • ICP® probe microphone,
              • Sensitivity 2.15 mV / PA,
              • Dynamic range > 164 dB,
              • Frequency range 2 … 20,000 Hz,
              • BNC connector,
              • Including tools, probes and transport case
                • PCB-426A10

                  • ICP® preamplifiers for 1/2 "-microphones, < / l"i >
                  • 20 Hz high-pass filter,.
                  • Gain - 0.1 dB,
                  • Frequency range 10... 125,000 Hz
                  • Including the TEDS memory chip

                    PCB-426A11

                  • ICP® preamplifiers for 1/2 "-microphones,
                  • Slide switch-configurable,
                  • Output signal high-pass filtered, unfiltered and A weighted,
                  • Gain 0 dB or 20 dB,
                  • Frequency range 5 … 125,000 Hz,
                  • Incl. TEDS memory chip
                    • PCB-426A13

                    • Short ICP® preamplifiers for 1/2 "-microphones,
                    • Gain - 0.2 dB,
                    • Frequency range 0.6 … 126,000 Hz,
                    • Incl. TEDS memory chip

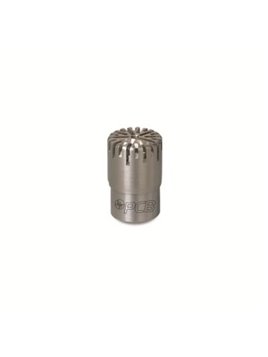

                      • PCB-377A12

                      • Prepolarized 1/4 "precision microphone capsule for pressure applications,
                      • Sensitivity 0.25 mV / PA,
                      • Dynamic range > 178 dB,
                      • Frequency range 4 … 20,000 Hz
                        • PCB-377A14

                        • Prepolarized 1/4 "precision microphone capsule for pressure applications,
                        • Sensitivity 1.0 mV / PA,
                        • Dynamic range > 174 dB,
                        • Frequency range 4 … 70,000 Hz
