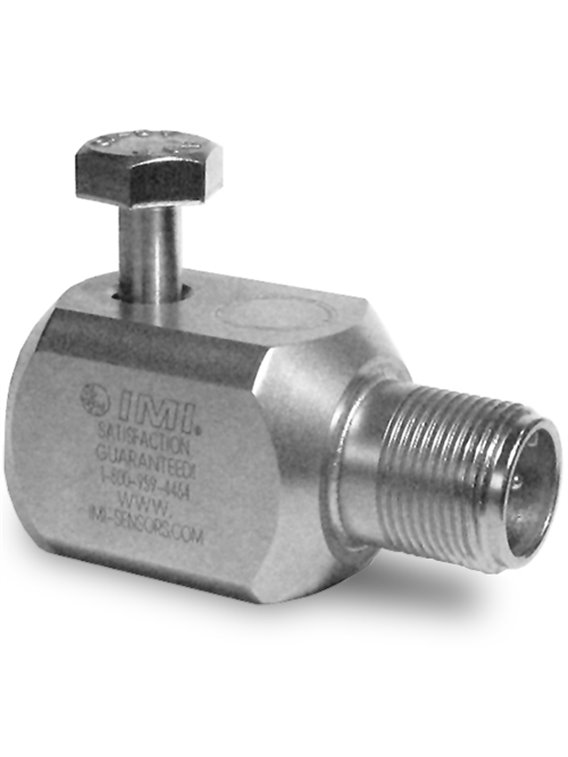

PCB-602M42
    zoom_out_map

      PCB-602M42

    • Industrial ICP® vibration sensor,
    • With hole for M8 screw,
    • Measurement range 50 g,
    • Sensitivity 100 mV/g,
    • Frequency range 0.5 … 8,000 Hz,
    • One-point calibration at 100 Hz,
    • 2-pin female connector on the side
    • "
      basic data
      sensitivity (±20%)100 mV/g10.2 mV/(m/s²)[4]
      measuring range±50 g±490 m / s²
      Frequency range (± 3 dB)30 … 480,000 cpm0.5 … 8,000 Hz[2]
      resonance frequency1,500 kcpm25,000 Hz[1]
      Wide band resolution350 µg3.434 µm / s ²[1]
      linearity≤1%[3]
      Transverse acceleration sensitivity≤ 7%
      conditions of use
      Overload limit (shock)5,000 g pk49,050 m/s² pk
      temperature range-65 … 250 ° F-54 … 121 ° C
      Type of protectionIP68
      Technical characteristics
      settling time (on bias voltage ± 1%)≤ 2.0 s
      discharging charging time constant≥ 0.3 s
      Power18 … 28 V DC
      constant power supply2 … 20 mA
      Output impedance< 150 Ω
      Bias voltage8 … 12 V DC
      Spectral noise (10 Hz)8.0 µg / √ Hz78.5 (µm / s ²) / √ Hz[1]
      spectral noise (100 Hz)5 µg / √ Hz49.1 (µm / s ²) / √ Hz[1]
      Spectral noise (1,000 Hz)4 µg / √ Hz39.2 (µm / s ²) / √ Hz[1]
      electrical insulation (housing)≥ 100 MΩ
      Physical properties
      size - length2.04 in51.8 mm
      size - width1.00 in25.4 mm
      Size - height1.00 in25.4 mm
      size5.36 oz152 g
      Mounting threadM8 x 1.25
      Assembly torque2 … 5 ft-lb2.7 … 6.8 Nm
      sensor elementceramic
      geometry of the Sensor elementshear principle
      housing materialstainless steel
      sealinghermetically sealed welded
      Electrical connection2-pin connector (MIL-C-5015)
      connection positionside
      notes
      [1]typically
      [2]the upper cut-off frequency tolerance: ±10%
      [3]zero-based balancing line, determined using the method of least squares
      [4]conversion factor 1 g = 9.81 m/s²
      [5]details: see PCB Declaration of conformance PS023
      Accessories
      081 M 171passage screw M8 x 1.25-1
      081A97Passage screw 1/4 "28-1
      ICS-2single point calibration at 100 Hz (traceable to NIST)-1
