List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 889-900 of 1981 item(s)

Sort by:

Showing 889-900 of 1981 item(s)

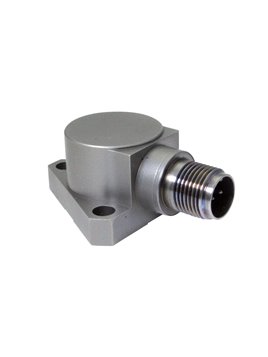

PCB-357A100

0

PCB-357A100

Vibration sensor with charge output,
Continuous use temperature up to 482 ° C,
With UHT-12™ sensor element,
(no popcorn noise),
Measuring range 200 g,
Sensitivity 5 pC/g,
Upper cutoff frequency 5,000 Hz,
2-pin female connector on the side

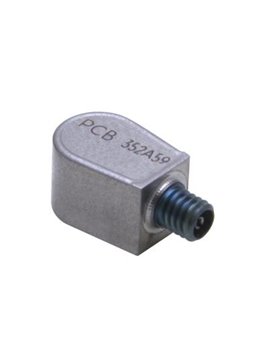

PCB-352A59

1

PCB-352A59

ICP®-Miniatur-Vibrationssensor,
With TEDS memory chip,
Frequency range 0.7 ... 10.000 Hz,
Measuring range 500 g,
Sensitivity 10 mV / g,
Mass 0.9 grams

PCB-TLD352M131

1

PCB-TLD352M131

ICP®-Vibrationssensor,
Measuring range ± 50 g pk,
Sensitivity 100 mV / g,
Frequency range 0.5 ... 10.000 Hz,
10-32 connector at the top,
Ground isolated,
High frequency calibration included

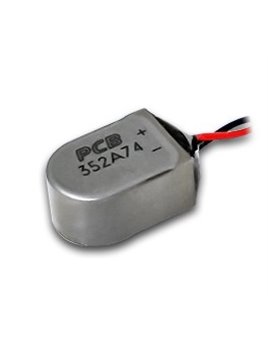

PCB-352A74

2

PCB-352A74

ICP®-miniature vibration sensor,
Mass 1.2 grams,
Measurement range 50 g,
Sensitivity 100 mV/g,
Frequency range 1... 8,000 Hz,
Integrated cable, length 3 m,
ending on 10-32 plug

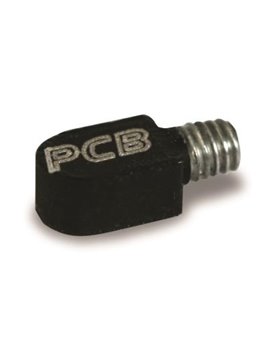

PCB-352A26

0

PCB-352A26

ICP®-miniature vibration sensor
Mass 0.2 grams
Mass-insulated
Measuring range 500 g
Sensitivity 10 mV / g
Frequency range 2... 10,000 Hz
3-56 female connector on the side
Including connection cable, length 3 m,
ending on 10-32 plug

PCB-TLD355M102

2

PCB-TLD355M102

ICP®-Vibrationssensor,
With through hole,
Ionizer with ground insulation,
Ground isolated,
Measuring range 500 g,
Sensitivity 10 mV / g,
Frequency range 1 ... 7,000 Hz,
10-32 connector on the side

PCB-(M)320C53

0

PCB-(M)320C53

ICP® high-temperature vibration sensor,
Continuous use temperature up to 163 ° C,
Measuring range 5,000 g,
Sensitivity 1 mV / g,
Frequency range 1... 5,000 Hz,
Mass 1.9 grams,
5-44 connector on the side

PCB-JM352M138

1

PCB-JM352M138

ICP®-miniature vibration sensor with ceramic sensor element,

Overdrive electronics for applications with automatic sample contacting,

Masseisoliert,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

Weight 2.8 grams,

With mass insulation and anti-Overdrive electronics
for applications with automatic sample contacting,

5-44 female connector above

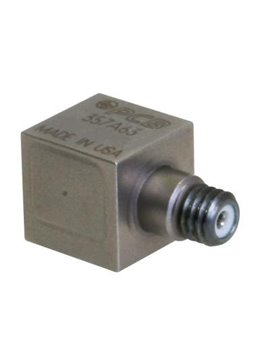

PCB-357A63

0

PCB-357A63

Vibration sensor with charge output
Continuous use temperature up to 482 ° C
Radiation-resistant
Measuring range 5,000 g
Sensitivity 0.53 pC/g
Upper frequency limit 10,000 Hz
10-32 socket side

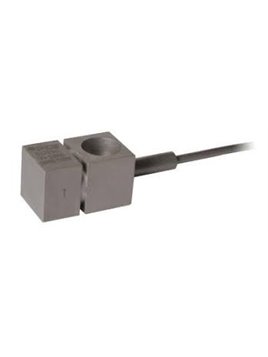

PCB-357E92

1

PCB-357E92

Vibration sensor with charge output,
Continuous use temperature up to 649 ° C,
With drill through,
Measuring range 1000 g,
Sensitivity 2.3 pC/g,.
Upper cutoff frequency 2.500 Hz,
Integrated hardline cable, length 3 m,
ending on 10-32 socket,
New: Slim 10-32 socket (diameter 6. 35 mm)

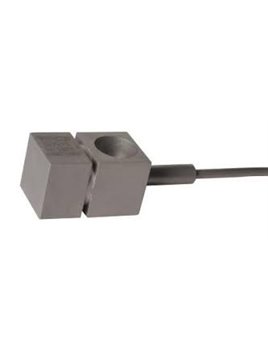

PCB-357E93

0

PCB-357E93

Vibration sensor with charge output,
Measuring axis perpendicular to the mounting screw,
Continuous use temperature up to 649 ° C,
With drill through,
Measuring range 1000 g,
Sensitivity 2.3 pC/g,
Upper cutoff frequency 2.500 Hz,
Integrated hardline cable, length 3 m,
ending on 10-32 socket,
New: Slim 10-32 socket (diameter 6. 35 mm)

PCB-357A94

0

PCB-357A94

Vibration sensor with differential charge output
Continuous use temperature up to 649 ° C
With through hole
Measuring range 1000 g
3.3 sensitivity pC/g
Upper frequency limit 3,000 Hz
Integrated hardline cable, length 3 m,
ending on 7/16-27 2-pin
