List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 877-888 of 1981 item(s)
Showing 877-888 of 1981 item(s)

PCB-3711F1130G

  • MEMS accelerometer
  • Suitable for measuring static accelerations
  • Measuring range ± 30 g pk (± 294.2m / s²)
  • Sensitivity (± 3%) 45 mV / g (4.59mV / (m / s²))
  • Frequency range (± 5%) 0… 1,500 Hz
  • Supply voltage 5… 32 V DC
  • 4-pin connection socket on the side

    PCB-078W10

    • Protection class IP 68
    • Shielded flexible four-wire cable
    • Length 3 meters
    • 4-pin connector to three BNC connectors

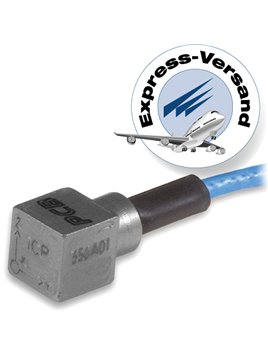

      PCB-356A01/NC

      • Triaxial ICP® miniature vibration sensor, li >
      • Mass 1 gram,.
      • Measuring range 1000 g,
      • Sensitivity 5 mV / g,.
      • Frequency range 2... 8,000 Hz,
      • Integrated cable, length 1.5 m,
        ending on 4-pin female connector.
      • Without extension cable li >

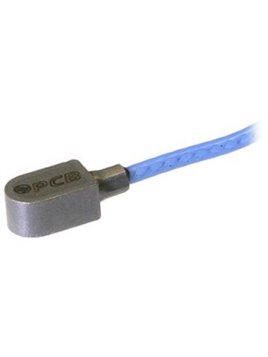

        PCB-352A92

        • ICP® miniature shock sensor
        • Mass 0.17 grams
        • Measuring range 20,000 g
        • Sensitivity 0.25 mV / g
        • Continuous use temperature up to 163 ° C
        • Frequency range 1.2... 10,000 Hz
        • Integrated cable, length 0.9 m,
          ending on 10-32 socket

          PCB-TLD339A37/NC

          • Triaxial ICP® high temperature vibration sensor
          • Continuous operating temperature up to 180 ° C
          • Low temperature coefficient
          • With integrated low-pass filter
          • Measuring range 50 g
          • Sensitivity 100 mV / g
          • Frequency range 0.2 ... 7,000 Hz
          • 4-pin connection socket on the side

            PCB-MXM622B11

            • Industrial ICP® vibration sensor
            • With mine approval
            • Measuring range 50 g
            • Sensitivity 100 mV / g
            • Frequency range 0.2 ... 10,000 Hz
            • Frequenzgangkalibrierung
            • Integrated connection cable, length 3 meters,
              ending on the cut end

              PCB-VO(M)622B01

              • Industrial ICP® vibration sensor
              • With vibration velocity output
              • Measuring range 1.27 m / s
              • Sensitivity 3.9 V / (m / s)
              • Frequency range 3 ... 9,000 Hz
              • Frequenzgangkalibrierung
              • 2-pin female connector on top

                PCB-VO(M)622B11

                • Industrial ICP® vibration sensor
                • With vibration velocity output
                • Measuring range 1.27 m / s
                • Sensitivity 3.9 V / (m / s)
                • Frequency range 3 ... 9,000 Hz
                • Frequenzgangkalibrierung
                • Integrated connection cable, length 3 meters,
                  ending on the cut end

                  PCB-EX682A40

                  • Sensitivity: (+/- 5%) 10 mV / pC (10 mV / pC)
                  • Output voltage: +/- 2.5 Vpk
                  • Temperature range: -40 to +176 ° F (-40 to 80 ° C)

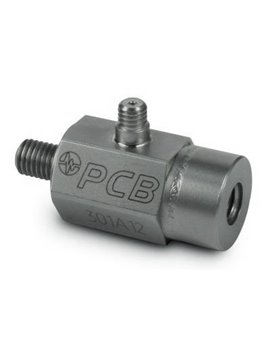

                    PCB-301A12

                    • ICP® calibration reference-Shock Accelerometer
                    • Measuring range 10,000 g
                    • Sensitivity 0.5 mV / g
                    • Frequency range 1 ... 10,000 Hz
                    • 10-32 connector on the side

                      PCB-EX378B02

                      • 1/2 "ICP® Precision Microphone for Free Field Applications
                      • Sensitivity 50 mV / Pa
                      • Dynamic range> 137 dB
                      • Frequency range 3.75 ... 20,000 Hz
                      • BNC connector
                      • Calibrated as a system
                      • With ATEX / IECEx approval
