List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 901-912 of 1981 item(s)
Showing 901-912 of 1981 item(s)

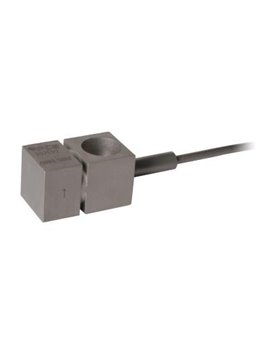

PCB-357A95

  • Vibration sensor with differential charge output
  • Measuring axis perpendicular to the mounting screw
  • Continuous use temperature up to 649 ° C
  • With through hole
  • Measuring range 1000 g
  • 3.3 sensitivity pC/g
  • Upper frequency limit 3,000 Hz
  • Integrated hardline cable, length 3 m,
    ending on 7/16-27 2-pin

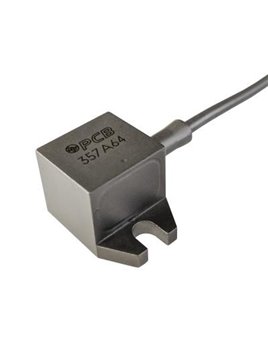

    PCB-357A64

    • Vibration sensor with charge output
    • Continuous operating temperature up to 650 ° C
    • Sensormaterial UHT-12™
    • Ground-insulated housing, screw-mounted
    • Measuring range 1,000 g
    • Sensitivity 1.15 pC / g
    • Upper cutoff frequency 10,000 Hz
    • Integrated hardline cable

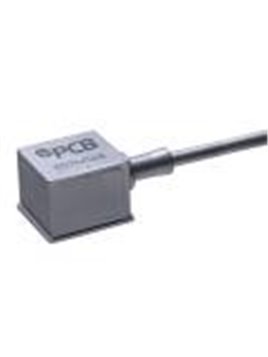

      PCB-357M168

      • Vibration sensor with charge output
      • Continuous operating temperature up to 650 ° C
      • Sensormaterial UHT-12™
      • Ground-insulated housing, welded mounting
      • Measuring range 1,000 g
      • Sensitivity 1.15 pC / g
      • Upper cutoff frequency 10,000 Hz
      • Integrated hardline cable

        PCB-EX357A94

        • With ATEX / IECEx / CSA approval
        • Vibration sensor with differential charge output
        • Continuous operating temperature up to 649 ° C
        • With through hole
        • Measuring range 1,000 g
        • Sensitivity 3.3 pC / g
        • Upper limit frequency 3,000 Hz
        • Integrated hardline connection cable, length 3 meters,
          ending on 7 / 16-27 2-pin

          PCB-EX357A95

          • With ATEX / IECEx / CSA approval
          • Vibration sensor with differential charge output
          • Measuring axis perpendicular to the mounting screw
          • Continuous operating temperature up to 649 ° C
          • With through hole
          • Measuring range 1,000 g
          • Sensitivity 3.3 pC / g
          • Upper limit frequency 3,000 Hz
          • Integrated hardline connection cable, length 3 meters,
            ending on 7 / 16-27 2-pin

            PCB-EX357E90

            • With ATEX / IECEx / CSA approval
            • Vibration sensor with charge output
            • Continuous operating temperature up to 649 ° C
            • With through hole
            • Measuring range 1,000 g
            • Sensitivity 5 pC / g
            • Upper limit frequency 2,500 Hz
            • Integrated hardline connection cable, length 3 meters,
              ending on 10-32 socket
            • New: slim 10-32 socket (diameter 6.35 mm)

              PCB-EX357E91

              • With ATEX / IECEx / CSA approval
              • Vibration sensor with charge output
              • Measuring axis perpendicular to the mounting screw
              • Continuous operating temperature up to 649 ° C
              • With through hole
              • Measuring range 1,000 g
              • Sensitivity 5 pC / g
              • Upper limit frequency 2,500 Hz
              • Integrated hardline connection cable, length 3 meters,
                ending on 10-32 socket
              • New: slim 10-32 socket (diameter 6.35 mm)

                PCB-EX357E92

                • With ATEX / IECEx / CSA approval
                • Vibration sensor with charge output
                • Continuous operating temperature up to 649 ° C
                • With through hole
                • Measuring range 1,000 g
                • Sensitivity 2.3 pC / g
                • Upper limit frequency 3 kHz
                • Integrated hardline connection cable, length 3 meters,
                  ending on 10-32 socket
                • New: slim 10-32 socket (diameter 6.35 mm)

                  PCB-EX357E93

                  • With ATEX / IECEx / CSA approval
                  • Vibration sensor with charge output
                  • Measuring axis perpendicular to the mounting screw
                  • Continuous operating temperature up to 649 ° C
                  • With through hole
                  • Measuring range 1,000 g
                  • Sensitivity 2.3 pC / g
                  • Upper limit frequency 3 kHz
                  • Integrated hardline connection cable, length 3 meters,
                    ending on 10-32 socket
                  • New: slim 10-32 socket (diameter 6.35 mm)

                    PCB-350A43

                    • Triaxial ICP® shock acceleration sensor,
                    • Mass-insulated,
                    • With electric and mechanical filters,
                      (-3 dB at 25,000 Hz)
                    • Measuring range 10,000 g,
                    • Sensitivity 0.5 mV / g,
                    • Frequency range 0.4... 10,000 Hz,
                    • Integrated cable, length 1.5 m,
                      ending on 4-pin female connector,
                    • Including extension cable, length 1.5 m,
                      ending on three BNC plugs

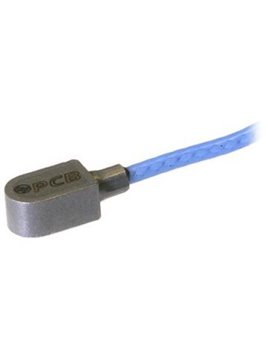

                      PCB-352A91

                      • ICP® miniature shock sensor
                      • Mass 0.17 grams
                      • Measuring range 5,000 g
                      • Sensitivity 1 mV / g
                      • Continuous use temperature up to 163 ° C
                      • Frequency range 1.2... 10,000 Hz
                      • Integrated cable, length 0.9 m,
                        ending on 10-32 socket

                        PCB-3711F1110G

                        • MEMS DC accelerometer
                        • Suitable for measuring static accelerations
                        • Measuring range ± 10 g pk (± 98.1m / s²)
                        • Sensitivity (± 3%) 135 mV / g (13.8mV / (m / s²))
                        • Typical frequency range (± 5%) 0 ... 1,000 Hz
                        • Supply voltage 5… 32 V DC
                        • 4-pin connection socket on the side
