List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 1717-1728 of 1981 item(s)

Sort by:

Showing 1717-1728 of 1981 item(s)

PCB-393B32

ICP® vibration sensor for seismic measurements,

Measurement range 1 g,

Sensitivity 5,000 mV / g,

Frequency range 0.2 …?200 ?z,

Wide band resolution 0.000002 g RMS,

2-pin female connector above

PCB-393C

ICP® vibration sensor for seismic measurements,

Measuring range 2.5 g,

Sensitivity 1,000 mV / g,

Frequency range 0.025 … 800 Hz,

Wide band resolution 0.0001 g RMS,

10-32 female connector on the side

PCB-352M170

ICP® vibration sensor for vacuum applications,

Low outgassing

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 1 … 10,000 Hz,

10-32 female connector on the side

PCB-352M208

ICP®-miniature vibration sensor for vacuum applications,

Low outgassing

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 10,000 Hz,

Mass 0.7 grams,

Integrated cable, length 3 m,
ending on 10-32 plug

PCB-352M212

ICP®-miniature vibration sensor for vacuum applications,

Low outgassing

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 0.5 … 10,000 Hz,

Mass 0.64 grams,

Integrated cable, length 3 m,
ending on 10-32 plug

PCB-357A07

Miniature vibration sensor with charge output,

Low outgassing

Mass 0.96 gram,

Continuous use temperature up to 260 ° C,

Measuring range 2,000 g

Sensitivity 1.7 pC/g,

Upper frequency limit 15,000 Hz,

M3 socket side,

Including connection cable, length 3 m,
ending on 10-32 plug

PCB-66212APZ1

ICP® vibration sensor for OEM applications,

TO-5 package,

Suitable for PCB mounting,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

Connection pins below

PCB-66332APZ1

ICP® vibration sensor for OEM applications,
TO-8 package,
Suitable for PCB mounting,
Measuring range 5 g,
Sensitivity 1,000 mV / g,
Frequency range 0.25 … 5,000 Hz,
One-point calibration at 100 Hz,
Connection pins below

PCB-(M)357A05

Vibration sensor with charge output,

Continuous use temperature to 177 ° C,

With through hole,

Measuring range 500 g

Sensitivity 17 pC/g,

Upper frequency limit 10,000 Hz,

10-32 female connector on the side

PCB-357A08/NC

Miniature vibration sensor with charge output,

Mass 0.16 grams,

Continuous use temperature to 177 ° C,

Measuring range 1000 g,

Sensitivity 0.35 pC/g,

Upper frequency limit 12.000 Hz,

3 56-connector side,

Without connection cable

PCB-357A09/NC

Miniature vibration sensor with charge output,

Mass 0.6 grams,

Continuous use temperature to 177 ° C,

Measuring range 2,000 g

Sensitivity 1.7 pC/g,

Upper frequency limit 10,000 Hz,

3 56-connector side,

Without connection cable

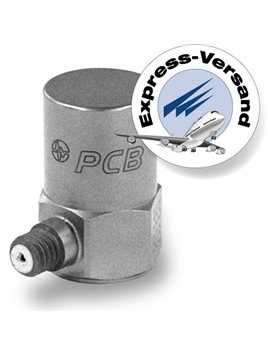

PCB-357B03

Vibration sensor with charge output,

Continuous use temperature up to 260 ° C,

Measuring range 2,000 g

Sensitivity 10 pC/g,

Upper frequency limit 9,000 Hz,

10-32 female connector on the side
