List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 1705-1716 of 1981 item(s)

Sort by:

Showing 1705-1716 of 1981 item(s)

PCB-(M)320C18

ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 10,000 Hz,

Mass 1.7 grams,

10-32 female connector above

PCB-(M)320C20

ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 10,000 Hz,

10-32 female connector above

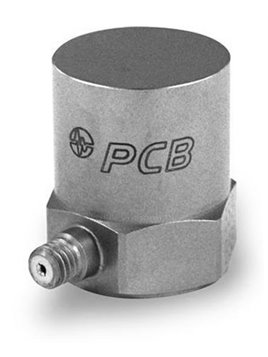

PCB-320C33

ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 1 … 4.000 Hz,

10-32 female connector on the side

PCB-HT352A21/NC

ICP®-miniature vibration sensor,

Continuous use temperature up to 163 ° C,

Mass 0.6 grams,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 1 … 10,000 Hz,

3 56-connector side,

Without connection cable

PCB-HT352A25/NC

ICP®-miniature vibration sensor,

Continuous use temperature up to 163 ° C,

Mass 0.6 grams,

Measuring range 2,000 g

Sensitivity 2.5 mV / g,

Frequency range 1 … 10,000 Hz,

3 56-connector side,

Without connection cable

PCB-HT352B01

ICP®-miniature vibration sensor,

Continuous use temperature up to 163 ° C,

Measuring range 5,000 g,

Sensitivity 1 mV / g,

Frequency range 2 … 10,000 Hz,

Mass 0.7 grams,

Integrated cable, length 3 m,
ending on 10-32 plug

PCB-(M)353B77

ICP®-miniature vibration sensor,

Measuring range 2,500 g,

Sensitivity 2 mV / g,

Mass 1.7 grams,

Integrated cable, length 3 m,
ending on 10-32 plug

PCB-393A03

ICP® vibration sensor for seismic measurements,

Measuring range 5 g,

Sensitivity 1,000 mV / g,

Frequency range 0.5 … 2,000 Hz,

Wide band resolution 0.00001 g RMS,

2-pin female connector above

PCB-393B04

ICP® vibration sensor for seismic measurements,

Measuring range 5 g,

Sensitivity 1,000 mV / g,

Frequency range 0.06 … 450 Hz,

Wide band resolution 0.000003 g RMS,

10-32 female connector above

PCB-393B05

ICP® vibration sensor for seismic measurements,

Measuring range 0.5 g,

Sensitivity 10,000 mV / g,

Frequency range 0.6 … 450 Hz,

Wide band resolution 0.000004 g RMS,

10-32 female connector above

PCB-393B12

ICP® vibration sensor for seismic measurements,

Measuring range 0.5 g,

Sensitivity 10,000 mV / g,

Frequency range 0,15 … 1000 Hz,

Wide band resolution 0.000008 g RMS,

2-pin female connector above

PCB-393B31

ICP® vibration sensor for seismic measurements,

Measuring range 0.5 g,

Sensitivity 10,000 mV / g,

Frequency range 0.1 …?200 ?z,

Wide band resolution 0.000001 g RMS,

2-pin female connector above
