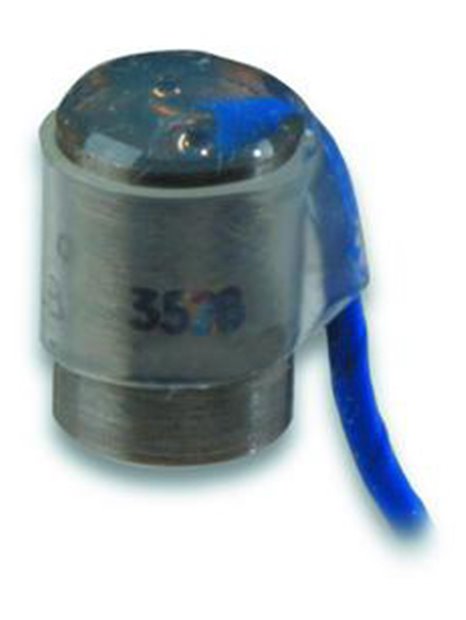

PCB-352M208
| basic data | |||
| sensitivity (±10%) | 10 mV / g | 1.02 mV/(m/s²) | |
| range | ±500 g pk | ±4. 905 m/s 2 pk | |
| frequency range (±5%) | 2 … 10,000 Hz | ||
| Frequency range (± 10%) | 1 … 17,000 Hz | ||
| resonance frequency | ≥ 65,000 Hz | ||
| wide band resolution | 0.003 g RMS | 0.03 m/s² RMS | [1] |
| Linearity | ≤ 1% | [2] | |
| transverse acceleration sensitivity | ≤ 5% | ||
| conditions of use | |||
| (Shock) overload limit | ± 10.000 g pk | ±98.100 m/s² pk | |
| Temperature range (operation) | -65 … 250 ° F | -54 … 121 ° C | |
| Technical characteristics | |||
| Supply voltage | 18 … 30 V DC | ||
| Constant power supply | 2 … 20 mA | ||
| output impedance | ≤200Ω | ||
| Bias voltage | 7 … 11 V DC | ||
| discharging charging time constant | 0.3 … 1,0 s | ||
| settling time (on Bias-Spannung ±10%) | < 3 s | ||
| spectral noise (1 Hz) | 1,000 µg / √ Hz | 9.810 (µm / s ²) / √ Hz | [1] |
| Spectral noise (10 Hz) | 300 µg / √ Hz | 2.943 (µm / s ²) / √ Hz | [1] |
| spectral noise (100 Hz) | 80 µg / √ Hz | 785 (µm / s ²) / √ Hz | [1] |
| spectral noise (1,000 Hz) | 25 µg / √ Hz | 308 (µm / s ²) / √ Hz | [1] |
| physical properties | |||
| size -. Diameter | 0.24 in | 6.1 mm | |
| Größe - height | 0.32 in | 8.1 mm | |
| mass | 0.03 oz | 0.7 grams | [1] |
| sensor element | ceramic | ||
| Geometry of the sensor element | shear principle | ||
| housing material | titanium | ||
| sealing | Hermetically sealed | ||
| electrical connector | pins soldered cable | ||
| cable outlet | top | ||
| Cable terminating resistance | 10-32-coaxial connector | ||
| cable length | 10 ft | 3 m | |
| cable type | type 030, coaxial cable | ||
| Attachment | bonding | ||
| notes | |||
| [1] | typically | ||
| [2] | zero-based balancing line, determined using the method of least squares | ||
| equipment | |||
| 080A109 | mounting wax | -1 | |
| 080A90 | Superglue | -1 | |
| ACS-1 | frequency response, traceable to NIST (10 Hz up to the upper 5% point) | -1 |
