PCB-357B03
zoom_out_map

PCB-357B03

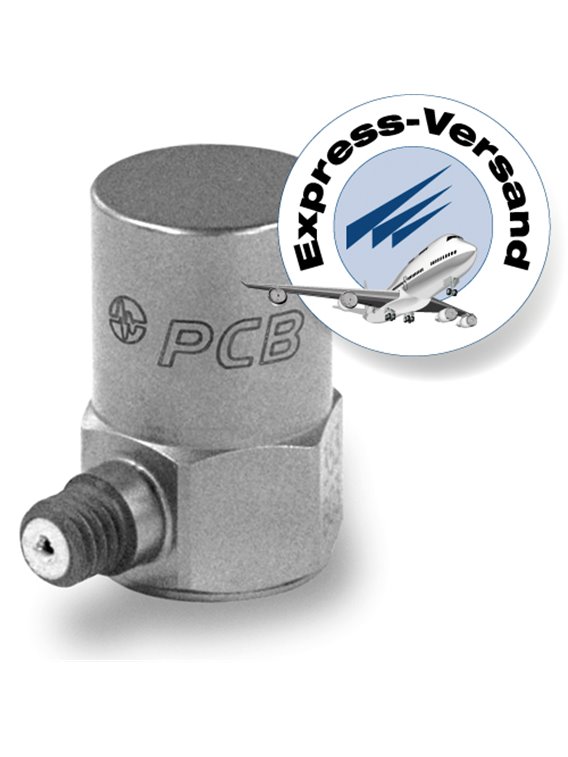

  • Vibration sensor with charge output,
  • Continuous use temperature up to 260 ° C,
  • Measuring range 2,000 g
  • Sensitivity 10 pC/g,
  • Upper frequency limit 9,000 Hz,
  • 10-32 female connector on the side
  • ,

    basic data
    sensitivity (±15%) 10 pC/g 1.02 pC/(m/s²)

    range ±2. 000 g PK ±19. 600 m/s² pk

    frequency range (+ 5%) 9,000 Hz   [2]

    Frequency range (+ 10%) 12,000 Hz   [2]

    frequency range (+ 3 dB) 18,000 Hz   [2]

    resonance frequency ≥38,000 Hz

    Linearity ≤1%   [3]

    transverse acceleration sensitivity ≤5%
    Conditions of use
    Overload limit (shock) ±21. 000 g pk ±206. 010 m/s² pk

    Temperature -95 … 500 ° F -71 … 260 ° C

    strain sensitivity (footprint) 0.0002 g/µε 0.002 (m/s²)/µε [1]
    Technical properties
    capacity 930 pF   [1]

    Insulation resistance (at 21 ° C) ≥1,000,000 MΩ

    insulation resistance (at 260 ° C) ≥100 MΩ   [1]

    Output polarity negative
    physical properties
    sensor element ceramic

    geometry of the Sensor element shear principle

    housing material titanium

    sealing hermetic

    Size - hex ½ in 12.7 mm

    size - height 0.81 in 20.6 mm

    mass 0.39 oz 11 g [1]

    electrical connection 10-32-coaxial socket

    connection position side

    Mounting thread 10-32 female thread
    notes
    [1] typically

    [2] the lower cut-off frequency depends on the used signal conditioning electronics.

    [3] zero-based balancing line, determined using the method of least squares
    equipment
    080A109 Mount wax -1

    081 B 05 mounting bolts (10-32 on 10-32) -1

    ACS-1 Frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1

    M081B05 mounting bolts 10-32 to M6 x 0.75 -1
    (J) mass insulation of
    frequency range (5%) 7,000 Hz

    frequency range (10%) 8,000 Hz

    Resonance frequency ≥30,000 Hz

    electrical insulation (base) >100 MΩ

    size - hex 0.5 in 12.7 mm

    Size-Height 0.86 at 21.8 mm
    (P) positive output voltage

    (W) waterproof cable connection
    electrical Port sealed integrated cable

    connection position side
    PCB-357B03

    Specific References

    Download

    357B03_drawing.PDF

    Technical drawing

    Download (54.98k)

    357B03_manual.PDF

    Operating instructions

    Download (555.31k)

    357B03_specs.PDF

    Technical data sheet

    Download (79.16k)
