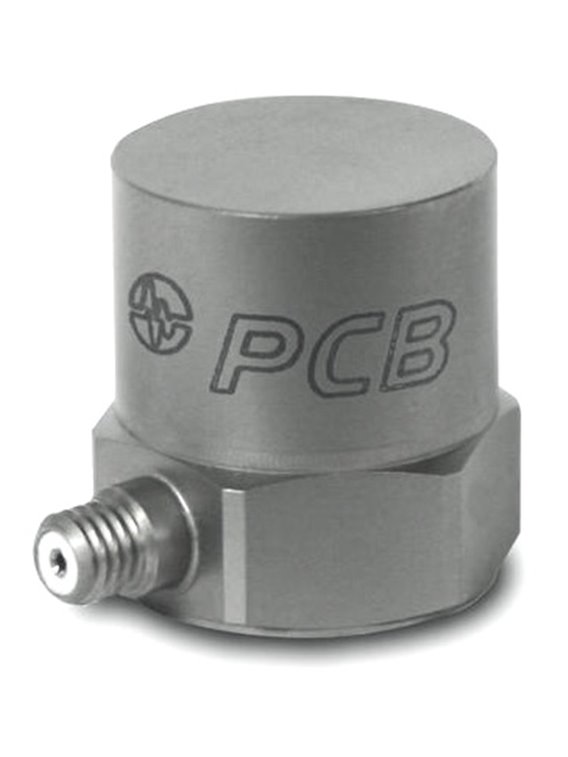

PCB-353B51
| basic data | |||
| sensitivity (±5%) | 500 mV / g | 51.0 mV/(m/s²) | |
| range | ±10 g pk | ±98, 1 m/s 2 pk | |
| frequency range (±5%) | 1 … 2,000 Hz | ||
| Frequency range (± 10%) | 0.7 … 4,000 Hz | ||
| frequency range (± 3 dB) | 0.35 … 7,000 Hz | ||
| Resonance frequency | ≥ 14.000 Hz | ||
| wide band resolution | 0.0004 g RMS | 0.004 m/s² RMS | [3] |
| Linearity | ≤ 1% | [1] | |
| transverse acceleration sensitivity | ≤ 5% | [2] | |
| conditions of use | |||
| Overload limit (shock) | ±4. 000 g pk | ±39. 240 m/s² pk | |
| Temperature range (operation) | -65 … 250 ° F | -54 … 121 ° C | |
| strain sensitivity (footprint) | 0.0002 g/µε | 0.002 (m/s²)/µε | [3] |
| specifications | |||
| power supply | 23 … 30 V DC | ||
| Constant power supply | 2 … 20 mA | ||
| output impedance | ≤ 100 Ω | ||
| Bias voltage | 11 … 16 V DC | ||
| Discharging charging time constant | 0.5 … 2.0 s | ||
| settling | <15 s | ||
| Spectral noise (1 Hz) | 200 µg / √ Hz | 1,962 (µm / s ²) / √ Hz | |
| spectral noise (10 Hz) | 16 µg / √ Hz | 157 (µm / s ²) / √ Hz | [3] |
| Spectral noise (100 Hz) | 5 µg / √ Hz | 49 (µm / s ²) / √ Hz | [3] |
| spectral noise (1,000 Hz) | 1 µg /.√ Hz | 10 (µm / s ²) / √ Hz | [3] |
| electrical insulation | No (optionally available) | ||
| physical properties | |||
| Gr öße - height | 0.85 in | 21.6 mm | |
| size - hex | 0.75 in | 19.1 mm | |
| weight | 1.1 oz | 32 grams | [3] |
| Sensor element | quartz | ||
| geometry of the sensor element | shear principle | ||
| housing material | Titanium | ||
| sealing | hermetically sealed welded | ||
| electrical connection | 10-32-coaxial socket | ||
| Connection position | side | ||
| mounting thread | 10-32 female thread | ||
| notes | |||
| [1] | zero-based balancing line, determined using the method of least squares | ||
| [2] | transverse acceleration sensitivity typically ≤ 3% | ||
| [3] | typically | ||
| [4] | details:see PCBs Declaration of conformance PS023 | ||
| equipment | |||
| 080A109 | mounting wax | -1 | |
| 080A12 | adhesive mounting | -1 | |
| 081 B 05 | mounting bolts (10-32 on 10-32) | -1 | |
| ACS-1 | frequency response, traceable to NIST (10 Hz up to the upper 5% point) | -1 | |
| M081B05 | Mounting bolts 10-32 to M6 x 0.75 | -1 | |
| (Q) increased discharge charge time constant | |||
| sensitivity (±10%) | 500 mV / g | 51.0 mV/(m/s²) | |
| frequency range (±5%) | 0.1 Hz | 0.1 s | |
| frequency range (± 10%) | Hz 0.07 | 0.07 s | |
| discharging charging time constant | ≥ 10s | ||
| Settling | < 300 s | ||
| equipment | |||
| ACS-4 | low frequency calibration (phase and amplitude) of 0.5 … 10 Hz | -1 | |
| (J) mass insulation | |||
| frequency range (±5%) | 2,000 Hz | ||
| Frequency range (± 10%) | 4,000 Hz | ||
| resonance frequency | 12,000 Hz | ||
| electrical insulation | ≥ 100 MΩ | ||
| size - hex | 0.75 in | 19.1 mm | |
| size - height | 0.90 in | 22.9 mm | |
| (W) waterproof cable connection | |||
| connection position | side |
