List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1441-1452 of 1981 item(s)
Showing 1441-1452 of 1981 item(s)

PCB-356A66

  • Triaxial ICP® vibration sensor,
  • With built-in low-pass filter,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 4,000 Hz,
  • 4-pin female connector on the side
    • PCB-356A67

    • Triaxial ICP® vibration sensor,
    • With built-in low-pass filter,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 0.5 … 2,500 Hz,
    • 4-pin female connector on the side
      • PCB-(M)356A70

      • Triaxial vibration sensor with charge output,
      • With drill through,.
      • Measuring range 500 g
      • Sensitivity 2.7 pC/g,.
      • Upper cutoff frequency 5,000 Hz,.
      • Three 5-44 connectors on the side
        • PCB-(M)356A71

        • Triaxial vibration sensor with charge output,
        • With through-holes.
        • Measuring range 500 g
        • Sensitivity 10 pC/g,.
        • Upper cutoff frequency 5,000 Hz,.
        • Three 10-32 connectors on the side
          • PCB-356M98

          • Triaxialer ICP® vibration sensor for vacuum applications,
          • Low outgassing
          • Measuring range 5 g,
          • Sensitivity 1,000 mV / g,
          • Frequency range 0.5 … 3,000 Hz,
          • 4-pin female connector on the side

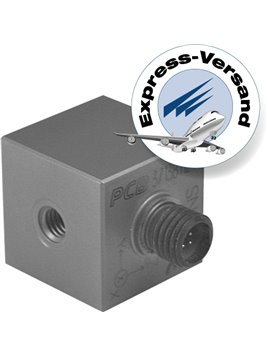

            • PCB-3713B1110G

            • Triaxial MEMS accelerometer,
            • Suitable for measuring static accelerations,
            • Measuring range 10 g,
            • Sensitivity200 mV / g,
            • Frequency range 0 … 1,000 Hz,
            • Supply voltage 6 … 30 V DC,
            • 9-pin female connector on the side
              • PCB-3713B11200G

                • Triaxial MEMS accelerometer,
                • Suitable for measuring static accelerations,
                • Measuring range 200 g
                • Sensitivity 10 mV / g,
                • Frequency range 0 … 850 Hz,
                • Supply voltage 6 … 30 V DC,
                • 9-pin female connector on the side

                  PCB-3713B112G

                • Triaxial MEMS accelerometer,
                • Suitable for measuring static accelerations,
                • Measurement range 2 g,
                • Sensitivity 1,000 mV / g,
                • Frequency range 0 … 250 Hz,
                • Supply voltage 6 … 30 V DC,
                • 9-pin female connector on the side
                  • PCB-3713B1130G

                  • Triaxial MEMS accelerometer,
                  • Suitable for measuring static accelerations,
                  • Measurement range 30 g,
                  • Sensitivity 66.7 mV / g,
                  • Frequency range 0 … 1,000 Hz,
                  • Supply voltage 6 … 30 V DC,
                  • 9-pin female connector on the side
                    • PCB-3713B1150G

                    • Triaxial MEMS accelerometer,
                    • Suitable for measuring static accelerations,
                    • Measurement range 50 g,
                    • Sensitivity 40 mV / g,
                    • Frequency range 0 … 1,000 Hz,
                    • Supply voltage 6 … 30 V DC,
                    • 9-pin female connector on the side
                      • PCB-3713B1210G

                      • Triaxial MEMS accelerometer,
                      • Suitable for measuring static accelerations,
                      • Measuring range 10 g,
                      • Sensitivity200 mV / g,
                      • Frequency range 0 … 1,000 Hz,
                      • Supply voltage 6 … 30 V DC,
                      • Integrated cable, length 3 m,
                        ending on stripped and tinned ends
                        • PCB-3713B12200G

                          • Triaxial MEMS accelerometer,
                          • Suitable for measuring static accelerations,
                          • Measuring range 200 g
                          • Sensitivity 10 mV / g,
                          • Frequency range 0 … 850 Hz,
                          • Supply voltage 6 … 30 V DC,
                          • Integrated cable, length 3 m, ending on stripped and tinned ends
